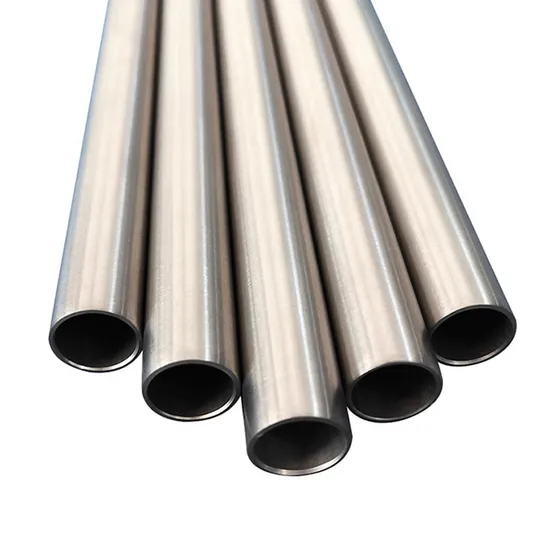

Seamless Titanium Tube Gr5 Medical
| US$15.00-50.00 | 1 KG (MOQ) |
Basic Info.
Model NO.
Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr9, Gr12
Technique
Hot Rolled,Cold Drawn
Grade
Gr1 ,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,Gr12
Shape
Round,Quare
out Diameter
5mm-169mm
Thickness
0.2mm-15mm
Type 1
Titanium Bars Titanium Sheets Titanium Pipes T
Technique 1
Forged Hot Rolled Seamless Cold Rolled Welded
Shape 1
Round Square Hexagonal
Transport Package
Standard Export Package.
Specification
as customers′requirement.
Trademark
Tianjin Yitejia Steel
Origin
Tianjin China
HS Code
81089040
Production Capacity
100 Tons/Month
Product Description
COMPANY PROFILE1.SGS and BV Audited company.
2.Industry experience over 20 years.
3.Management Systems-Internal Software
4.Finished Product Inventory-More Than 5000 Tons.
5.Raw Material inventory -Over 8000 Mertic Tons.
6.Shipment of goods -More than 50 countries worldwide.
7.We have the most convenient transport and prompt delivery.
8.We offer competitive price with best service.
9.We have high technical production line with top quality products.
10.We have win high reputation based on best quality products.
PRODUCTS INFORMATIONS
| Company | Tianjin Yitejia Steel Sales Co.,Ltd. |
| Description | Titanium plate, Titanium sheet, Titanium coil |
| Material | Gr1, Gr2, Gr3,Gr4,Gr5, Gr7, Gr6,Gr9, Gr11, Gr12 ,Gr16, Gr17,Gr25 TA0,TA1,TA2,TA5,TA6,TA7,TA9,TA10,TB2,TC1,TC2,TC3,TC4 |
| Standard | ASTM B265,ASME SB265,DIN17851,TiA16Zr5Mo1.5,JIS4100-2007,GB3461-2007 |
| Size | Cold rolled: Thick 0.02mm ~ 5mm * Wide 1500mm max * Long 2500mm max Hot rolled: Thick 5mm ~ 100mm * Wide 3000mm max * Long 6000mm max |
| Price term | Ex-Work,FOB,CNF,CFR,CIF,FCA,DDP,DDU,etc |
| Payment term | TT,L/C |
| MOQ | 100Kg |
| Export to | Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA,Brazil,Thailand,Korea, Iran,India,Egypt,Oman,Dubai,Kuwait,Peru,South Africa,Russia,Malaysia,Chile,etc |
| Package | Standard export package,suit for all kinds of transport ,or as required. |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High) |
| Application | 1.Based on High intensity,titanium products tensile strength can be up to 180Kg/mm². 2.Titanium and titanium alloy in aviation industry, is called "space metal"; In addition, in the shipbuilding industry, chemical industry, manufacturing machinery parts, telecommunications equipment, hard alloy, etc have increasingly extensive application 3.In addition, because of the titanium alloy with the human body has very good compatibility, so the titanium alloy can also be artificial bone. |
| Contact | If you have any question ,please feel free to contact me . We are sure your inquiry or requirements will get prompt attention. |
Chemical Composition
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | Bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | Bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | Bal |
| Gr4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | |
| Gr5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
| Gr7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
| Gr9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 02-0.4 | 0.6-0.9 | Bal |
Mechanical properties Requirements
| Grade | Tensile strengt(min) | Yield strength(min) | Elongaion(%) | ||
| Ksi | MPa | Ksi | Mpa | ||
| Gr1 | 35 | 240 | 20 | 138 | 24 |
| Gr2 | 50 | 345 | 40 | 275 | 20 |
| Gr3 | 65 | 450 | 55 | 380 | 18 |
| Gr4 | 80 | 550 | 70 | 483 | 15 |
| Gr5 | 130 | 895 | 120 | 828 | 10 |
| Gr7 | 50 | 345 | 40 | 275 | 20 |
| Gr9 | 90 | 620 | 70 | 438 | 15 |
| Gr12 | 70 | 438 | 50 | 345 | 18 |
