8t Patent Designed Turret Type Machining Center Desktop CNC Milling Machine for Metal
| US$24,000.00-28,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
BL-S450/550/640
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max. Drilling Dia.(U Driller)
20/22/24/30mm
Max. Tapping Dia.(Standard/Optional)
M12/14/16/24/27/33mm
Table Size
550*320/600*350/650*380/1000*500mm
Spindle Speed
6000rpm
Tool Magazine Type
8t Patent Designed Turret Type
Spindle Motor Power
3.7/5.5/7.5/11kw
X/Y/Z Axes Positioning Accuracy
±0.008/300mm
X/Y/Z Axes Repeatable Positioning Accura
0.005mm
Transport Package
Wooden Case
Specification
ce
Trademark
BLIN
Origin
China
Production Capacity
500 Units/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
Small desktop cnc milling drilling tapping machine center with tool changer(BL-S450/550/640)
- PATENT design high speed& high rigidity TURRET type tool changer
- Super FAST tool changing(HIGH EFFICIENCY)
- Especially suitable for STEEL, CASTING etc hard material BIG hole's DRILLING and TAPPING etc RIGID MACHINING
- Especially suitable for multiple operation's combination, batch and high efficiency production
- Machining efficiency is higher than CNC Milling Machine, Rigidity is higher than traditional CNC drilling& tapping center
- Tool changer driven by servo motor(HIGH PRECISION), lock by hydraulic(HIGH RIGIDITY)
- Adopt HT300 class cast iron
- 3 axes adopt wide linear guideway, high rigidity
- 3 axes adopt big pre-stretched ball screw
Comparison with common tool magazine of cnc machining center
| Our 8T tool magazine | Tool magazine of cnc machining center |
| Simple structure, good stability | Complex structure,high failure rate |
| Tool changing speed <1.2s | Tool changing speed >3s |
| Can change tool at random height | Have to change tool at required height |
| Tool never drop | Sometimes tool drop |
| No pull studs | Pull studs easy wear |
| Spindle not wear | Spindle easy wear |
| Tool holder will not block | Tool holder usually block |
| Good precision stability | Easy stick chips in spindle,difficult to keep stability |
| Tool qty max. 8T | Can be 16-24T |
| Max. speed only 6000rpm | Can be 6000-12000rpm |
| Tool holder not compatible | Tool holder is compatible |
| Tools has big interference | Small interference |
| Item | Specification | Unit | BL-S450 | BL-S550 | BL-S640 | BL-S850 |
| Capacity | Max. drilling dia.(U driller) | mm | Φ20 | Φ22 | Φ24 | Φ30 |
| Max. tapping dia.(standard/optional) | mm | M12/M16 | M14/M24 | M16/M27 | M16/M33 | |
| Worktable | Table size(L×W) | mm | 550×320 | 600×350 | 650×380 | 1000×500 |
| T slot(NO./width/distance) | mm | 3/14/92 | 3/14/92 | 3/14/114 | 5/18/90 | |
| Table max. loading | kg | 180 | 230 | 300 | 600 | |
| Spindle | Spindle motor power | kw | 3.7/5.5 | 5.5/7.5 | 5.5/7.5 | 7.5/11 |
| Spindle type | / | Own-made(ER32) | Own-made(ER32) | Own-made(ER40) | Own-made(ER40) | |
| Spindle speed range | rpm | 6000 | ||||
| Distance from spindle nose to table face | mm | 130~460 | 80~520 | 105~505 | 100~600 | |
| X/Y/Z axes | X/Y/Z axes travel | mm | 435/280/330 | 550/350/440 | 600/390/400 | 800/500/500 |
| X/Y/Z axes rapid moving speed | m/min | 32 | ||||
| X/Y/Z axes positioning accuracy | mm | ±0.008/300 | ||||
| X/Y/Z axes repeatable positioning accuracy | mm | 0.005 | ||||
| XY/Z axes linear guideway width | mm | 30/30/35 | 30/30/35 | 35/35/35 | 35/35/35(ROLLER type) | |
| Tool magazine | Tool magazine type | / | Patent designed turret type | |||
| Tool changing time | s | 1.2 | 1.2 | 1.5 | 1.5 | |
| Tools qty | pc | 8 | ||||
| Max. tool dia. | mm | Φ63 | Φ63 | Φ80 | Φ80 | |
| Others | Overall dimension(L×W×H) | mm | 1400×1500×2300 | 1580×1800×2100 | 2000×1650×2400 | 2400×1700×2100 |
| Weight | kg | 1850 | 2000 | 2500 | 4500 | |
* As option
Main parts list:
| Item | Brand |
| Ball screw | TAIWAN-SHAC/PMI/HIWIN C3 class |
| Linear guideway | TAIWAN-PMI/HIWIN H class |
| Ball screw bearing | CHINA top-HRB P4 class |
| Spindle | Own-made |
| Spindle bearing | CHINA Top-HRB |
| Tool magazine belt wheel& belt | USA-GATES |
| Tool magazine bearing | JAPAN-NSK |

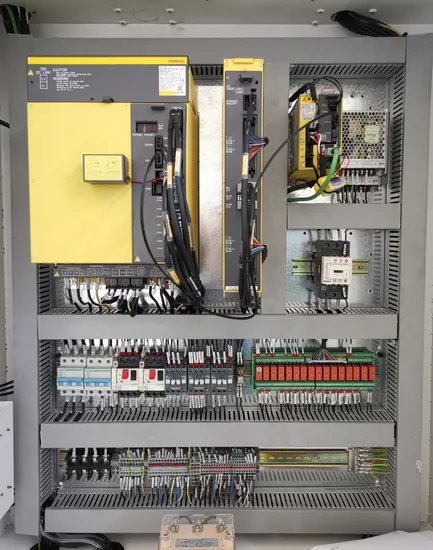

| Main electric parts | FRANCE-SCHNEIDER |
| Lubrication pump | Joint-venture |
Standard configuration:
-SYNTEC 6MD CNC controller
Optional configuration:
-SYNTEC 22MA/FANUC 0I MF CNC controller
-4th axes
