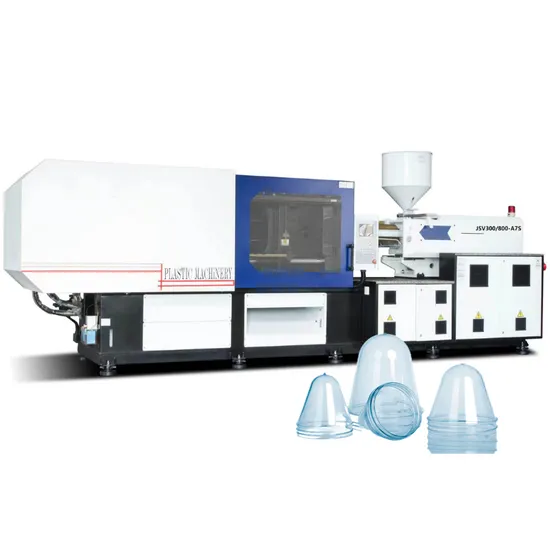

High Efficiency Jar Preform Injection Molding Machine Plastic Bottle Preform Making Machine

Product Description

Products Description
Bottle preform machine
There is a large variety of preform machines available at our factory. The wide-neck preform machine, hot filling bottle, and 20-liter bottle preform machine are available in diverse sizes and designs. We always follow stringent control measures to provide high-quality preform machines considering your industrial budget.
Feature of Injection Machine 1).Power saving: Save power 30%-60% 2).Oil saving: Using high performance filter device to increase using life of hydraulic oil.
3).High speed: Increase 20% performance capacity by using variable displacement pump.
4).No overflowing heating, low oil temperature saves cooling water, and increases the using life of sealing elements.
Product Paramenters

		MW400			MW500
Injection		A	B	C	A	B	C
Shout volume	cm³	1385	1590	2042	1590	2042	2550
Shot eight	g/	1260	1495	1919	1494	1919	2397
(PS)	Oz	44.1	52.3	67.2	52.3	67.2	83.9
Screw diameter	Mm	70	80	90	75	85	95
Injection pressure	Mpa	199	152	120	180	140	112
Screw L: D ratio	----	24:1	21:1	19:1	23.2:1	21:1	18.7:1
Screw stroke	Mm	360			360
Screw speed(stepless)	r/min	0~135			0~135
Clamping unit
Clamping force	KN	4000			5000
Opening stroke	mm	660			780
Platen size	mmxmm	1050x1050			1155x1155
Space between tie bars	mmxmm	730x710			830x830
Max.daylight	mm	1390			1600
Mold thiskness (min-max)	mm	250~730			300~820
Hydraulic ejection stroke	mm	185			210
Hydraulic ejection force	KN	111			111
Power unit
Hydraulic system pressure	Mpa	17.5			17.5
Pump motor	Kw	37			45
Heating capacity	Kw	23.2			27
Number of temp control zones	------	5+nozzle			5+nozzle
General
Dry-cycle time	sec	5.1			5.2
Oil tank capacity	L	950			1150
Machine dimensions(LXWXH)	Mxmxm	7.6x1.75x2.41			8.2x1.85x2.41
Machine weight	kg	17000			22000

Packing and Shipping

Packaging:
Stable wooden packaging protects the machine from impact and damage. A wrapped plastic film protects the machine from moisture and corrosion. This is a fumigation-free package that supports smooth customs clearance. Large machines are fixed in containers without packaging.
Shipping: At LCL, we worked with a reliable logistics team to get the machine to the port quickly and safely. At FCL, we obtain containers, and our skilled workers carefully load the containers. As for forwarders, we have professional and long-term cooperation forwarders who can process your shipments smoothly. We also want to achieve seamless cooperation with forwarders at your convenience.
Company Profile
Maiwei has been committed to the research of blow molding technology for many years. It has continuously accumulated experience in blow molding and improved product equipment to achieve more stable work, lower energy consumption and more durability. The product range includes: dairy products bottles, wine bottles, oil bottles, laundry detergent bottles, engine oil bottles, sprayers, hollow toys and other hollow plastic products. We'll actually help you solve your packaging blow molding problems, not just sell equipment. The machine has a wide application range and can increase or decrease the air source system according to user requirements. It has strong flexibility, low energy consumption and high efficiency.





Certifications
Our customers
FAQ
1.Q:Are you a factory or trading company? Where is your factory located? A: We are a factory,it is located in Huangyan,Taizhou city, Zhejiang Province, China.
2.Q:How about quality control in your factory? A: " Quality is the key point, do what customers needs."In the future, Maiwei will move towards more professional and deeper technical goals.
3.Q.What is your payment and delivery time? A:"The payment is 30% by T/T as down payment,70% by T/T before shipment.And the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 3-4 months.
4.Q.Do you provide any spare parts with the machine? A: Yes, MAIWEI will provide one set of standard spare parts to customers.
5.Q. What about the after-service? A:We offer over-all after sale service to meet customer's commandincluding on-line consulting and off line technical support.
