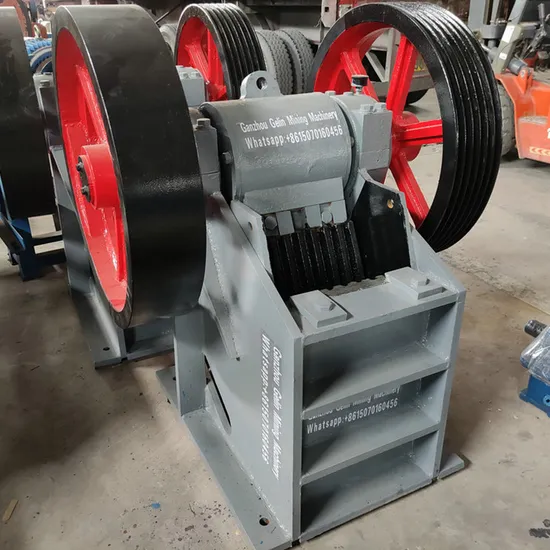

Jaw Crusher for Crushing Gold Rock Ore Stone Quartz

Product Description

Jaw Crusher for Crushing Gold Rock Ore Stone Quartz
1.Description
Jaw Crusher is mainly used to crush kinds of mining stones primarily, and the largest compression resistance of the material to be crushed is 320MPa. The jaw crusher is widely used in mining, metall-urgical industry, building material, highway, railway, and chemical industry.
Features
1). High ratio of crushing
2). Homogeneous final grain size
3). Simple structure
4). Reliable working condition
5). Easy maintenance
6). Low operating cost
2.Working Principle
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
3.Application
Our jaw crusher is widely used for
*kinds of mining
*metall-urgical industry
*building material
*highway
*railway
*chemical industry
4.Technical Data

Type	Feed Opening (mm)	Max.feeding size(mm)	Adjusting range of discharge opening(mm)	Capacity(t/h)	Rotation speed of eccentric shaft(r/min)	Motor power(kw)	total weight(t)	Dimensions(mm)
PE-200*300	200*300	180	15-50	2-6	260	7.5	1	910*750*990
PE-200*350	200*350	180	18-70	3-10	260	11	1.3	1000*870*990
PE-250*400	250*400	210	20-60	5-20	300	15	2.8	1300*1090*1270
PE-400*600	400*600	340	40-100	16-60	275	30	7	1730*1730*1630
PE-500*750	500*750	425	50-100	40-110	275	55	12	1980*2080*1870
PE-600*900	600*900	500	75-200	60-200	250	75	20	2290*2290*2400
PE-750*1060	750*1060	630	80-140	115-330	250	110	29	2660*2430*2800
PE-870*1060	870*1060	660	200-260	290-336	250	110	31.5	2810*2430*2800
PE-900*1060	900*1060	685	230-290	160-400	250	110	33	2870*2420*2940
PE-900*1200	900*1200	750	95-165	220-450	200	110	52	3380*2870*3330
PE-1000*1200	1000*1200	850	195-265	315-500	200	110	55	3480*3876*3330
PE-1200*1500	1200*1500	1020	150-300	400-800	180	160	100.9	4200*3300*3500
PEX-150*750	150*750	120	18-48	8-25	320	15	3.8	1200*1530*1060
PEX-250*750	250*750	210	25-60	13-35	330	30	5.5	1380*1750*1540
PEX-250*1000	250*1000	210	25-60	16-52	330	37	7	1560*1950*1390
PEX-250*1200	250*1200	210	25-60	20-61	330	45	8.5	2140*1660*1500
PEX-300*1300	300*1300	250	20-90	16-105	300	75	11	2720*1950*1600

5.Packing & Loading
6.About Us
Ganzhou Gelin Mining Machinery Company Limited is an expert manufacturing mining machines in China. Our company is located in the Industrial Zone of Shicheng County, Jiangxi Province.
Our distinctive products include Shaking table, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, Feeder, Classifier, ore washing machine and lab equipment etc. Our machines are popular in separating gold, copper, manganese, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite, etc.
Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, India, the Middle East, the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada and Australia. We have won high reputations from all of our clients for our machines and services.
Besides the above mentioned products, we can also design and manufacture many kinds of special mining machines and automatic processing lines according to the requests of customers. If you are in need of detailed information, please inform us. We will provide you with total solutions according to your specific requirements in time.
7.GELIN Services
--- PRE-SALE SERVICE ---
1.Based on clients' request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly;
2.Mine sample testing is available, we welcome the customer send the sample to you for testing by courier, or, the customer take the sample to our factory for testing;
3. Design and provide the complete processing flowchart;
4. Design & manufacturer products according to clients' demands.
--- AFTER-SALE SERVICE ---
1.Pre-check and test the products before delivery;
2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;
3.Trace the status of the shipping until the products received;
4.Prepare required documents to let clients pass custom clearance;
5.Dispatch experts to carry out below service on site:
1) Installation & debug of the machinery
2) Train the first-line operators & technical personnel
3) Carry out any other service clients may need
6. Provide technical exchanging & spare parts for life-long term
--- ONE STOP SOLUTION ---
1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;
2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;
3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.
8.Certificate
9.Customer Visiting
10.FAQ
Q: How big is your factory?
A: In tolal 6 work shops,17,000 m²,office 2500 m²,110 workers. Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
A:1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc. Q: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
Q: If i need the complete mineral processing line. is Gelin able to help us build it?
A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service. Welcome you visit our factory in your free time!
