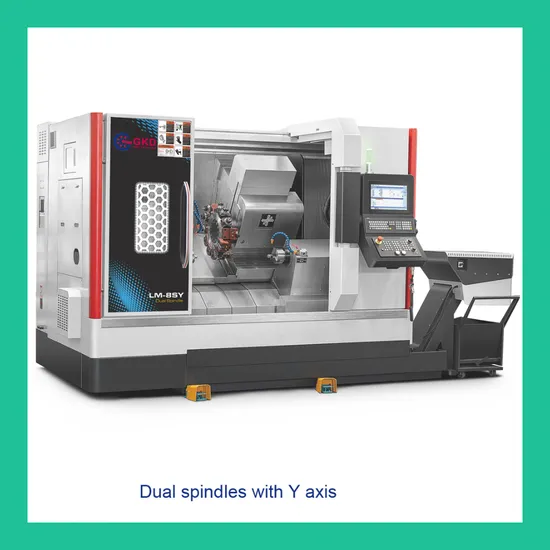

Dual Spindles CNC Lathe for Milling Operations

Product Description

High Precision Double Dual Spindles Slant Bed CNC Lathe – The Ultimate CNC Turning Center CNC (Computer Numerical Control) turning lathes have revolutionized the manufacturing industry by delivering unparalleled precision and remarkable efficiency in the production process. These advanced CNC turning lathes excel in a multitude of operations including drilling, tapping, turning, and boring. Utilized across numerous industries such as automotive, aerospace, medical, and electronics, they are instrumental in producing intricate and high-precision components with exceptional accuracy.
In this comprehensive article, we delve into the intricate components of a CNC turning lathe, uncover its sophisticated working principle, and explore its diverse applications.
Product Parameters

Model	LM-8SY
Double spindle/single power turret
Number of axis	7 Axis(X+Z+Z1+C1+C2+Y+TD)
Max turning diameter on the bed	Ф600mm
Max processing length	500mm
Max processing diameter	Ф500mm
Main spindle nose	A2-6
Main spindle hole	Ф66mm
Bar hole diameter	Ф52mm
Main spindle speed	0-4500rpm
Main spindle Chuck size	8"(Hydraulic chuck)
Sub-spindle nose	A2-5
Sub-spindle hole	Ф56mm
Bar hole diameter	Ф46
Sub-spindle speed	0-6000rpm
Sub-spindle chuck size	6"(Hydraulic chuck)
Main Spindle power	11KW
Sub-spindle power	7.5KW
X1 axis power	3.1KW
Y1 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power	3.1KW
Hydraulic pump motor power	3.1KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Outer diameter shank	25mm
Inside diameter shank	Ф32mm
Living tools milling speed	0-4000rpm
X1/Y1/Z1/Z2 axis rapid speed	25m/min
X1 axis travel	600mm
Y1 axis travel	140mm(±70mm)
Z1/Z2 axis travel	500mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.002mm
X/Y/Z/Z1 axis position accuracy	0.003mm
Oil tank capacity	72L
Cooling tank capacity	180L
Machine weight	5600KG
Machine size	4100*2300*2300mm
Controller	Simens 828D/Fanuc/Syntec

Company Profile
For many years, GKD (Mingju) has been steadfast in its mission to integrate resources and pioneer innovative technologies, thereby delivering superior quality to customers across the globe.
GKD is a distinguished conglomerate specializing in the research, development, and manufacturing of CNC machining centers. Strategically positioned near Hong Kong, China—often referred to as the 'World Factory'—and with its European headquarters in Italy (Taiwan), GKD boasts a comprehensive global sales and service network. The Group operates five prolific production bases in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu. Our premier product lineup includes vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, five-axis machining centers, and other high-end CNC machine tools and production lines. GKD has emerged as a leading professional manufacturer with an extensive industrial chain, making it a complete provider of CNC metal cutting machine tools in China. Our products are widely implemented in various sectors, including aerospace, mold manufacturing, automotive, energy, marine, engineering machinery, and 3C electronic products.
GKD Group is dedicated to delivering high-quality products and comprehensive solutions, rigorously adhering to the standards of high-speed, high-precision, and high-efficiency intelligent equipment. Our commitment to excellence ensures we provide cost-effective solutions that meet and exceed customer expectations. Supported by robust manufacturing capabilities and exceptional after-sales service, GKD serves a diverse clientele across dozens of countries and regions worldwide.
GKD Group is here to serve you sincerely!
Our Advantages
1. Unmatched Expertise: Benefit from our professional services, honed through years of experience in the CNC machine export industry.
2. Superior Craftsmanship: Leveraging advanced Italian and Taiwanese technology, we deliver unparalleled manufacturing excellence.
3. Flexible Payment Solutions: Choose from a variety of convenient payment options including T/T, Western Union, L/C, and Paypal.
4. Premium Quality: Enjoy high-quality, safe materials at competitive prices, ensuring maximum value for your investment.
5. Small Orders Welcome: We accommodate orders of all sizes, providing personalized attention regardless of scale.
6. Swift Response: Experience quick and efficient customer service, tailored to meet your needs promptly.
7. Secure and Speedy Shipping: Trust in our reliable transport solutions for safe and fast delivery of your products.
8. Custom Designs: Benefit from our OEM services, offering bespoke designs tailored to meet every customer’s unique requirements.
Certifications
Packaging & Shipping
After Sales Service
1)
We are pleased to offer a quality warranty of 12 months, starting from the day the shipment reaches its destination port, excluding physical damage. During this period, we will provide free fittings. However, we kindly ask that you return the damaged fittings to us by courier, at your cost, before we send the replacement parts. Post-warranty, any parts that require repair or replacement will be charged reasonably.
2)
Recognizing the challenges of face-to-face maintenance, we offer extensive online support. Our technical assistance is available through email, MSN/Skype, camera, video, telephone, and fax to help with installation, operation, adjustments, and maintenance.
3)
If you encounter issues that our online support cannot resolve, we provide Door-to-Door service. Should you require our engineers to assemble, maintain, or adjust the machine onsite, please assist with visa formalities, prepay travel expenses, and arrange accommodation for the duration of the service. Additionally, we request that you provide a translator for our service engineer. Alternatively, you are welcome to send your engineers to our factory for comprehensive, long-term, free technical training.
FAQ
1. What is your minimum order quantity and warranty?
Our minimum order quantity (MOQ) is one set, and we offer a comprehensive one-year warranty to ensure your peace of mind and operational reliability.
2. What brand of bearing do you use in your equipment?
We use high-quality NSK bearings from Japan to ensure maximum performance and longevity.
3. When can I expect delivery of my order?
We guarantee prompt delivery within 15-30 days after receiving your payment, ensuring you can start operations without delay.
4. How do you handle issues during the warranty period?
During the warranty period, we provide free maintenance for any product quality issues. If parts need replacement, we supply them at no additional cost. If the problem is not related to our machine's quality, we can send engineers for repair services at a reasonable cost.
5. Can your company dispatch technical personnel to train our workers at our facility?
Upon the machine's arrival at your installation site, we promptly send mechanical and electrical engineers according to your schedule. The buyer is responsible for lodging and boarding expenses abroad during installation, along with a fee of USD150.00 per day per person. We will also work with you to handle visa and installation preparations before traveling.
