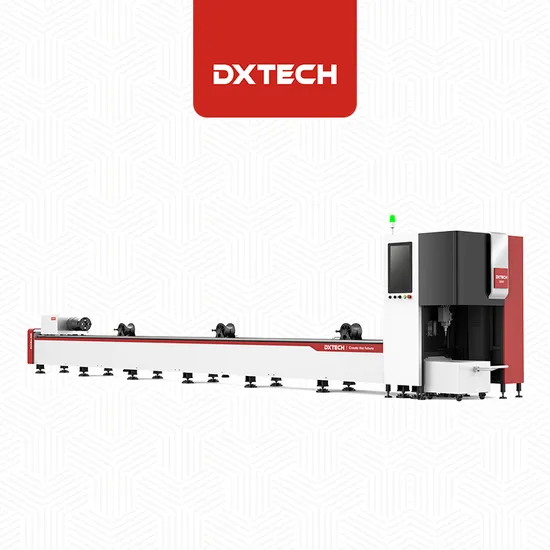

30% OFF Automated Laser Tube Cutter 1kw 2kw 3kw Iron Aluminum Pipe Fiber Laser Cutting Machine
The TL series is specially designed for mass cutting of pipes, and its efficiency is much higher than ordinary laser systems when cutting pipes and tubular metals. Pipe laser cutting machines are a cost-effective choice for cutting all types of pipe, ensuring precise and smooth cuts with enhanced safety features. Tubes and rectangular tubes can be fed fully automatically without manual operation. The special-shaped tube can realize manual semi-automatic feeding. Fast corner response greatly improves cutting efficiency.
Feature
(1) Heavy-duty mechanical structure
Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ºC stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy. (2)Pneumatic self-centering chuck
It has the advantages of high clamping accuracy, fast speed, self-centering gear linkage, and strong pipe loading capability of 120kg. (3)Split automatic support device
The intelligent tube rack solves the deformation problem during the cutting of long metal pipes.
(4)Autofocus
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Technical Parameters

Model	TL9350	TL12500
Max. tube length	9.2m	12m
Tube shape	Round/square/rectangular	Round/square/rectangular
X axis maximum moving speed	100m/min	100m/min
Y axis maximum moving speed	100m/min	100m/min
Positioning accuracy	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm
Chuck	Four pneumatic chucks	Four pneumatic chucks
Max. chuck rotating speed	130r/min	130r/min
Laser power	1kW - 4kW	1kW - 4kW
Laser	Multiple options	Multiple options
Clamping range	Φ20-Φ350mm 15 - 220mm	Φ20-Φ350mm 15 - 220mm

Cutting Sample

Product Category

Feedback
Company Profile
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.

02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.

03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.

04 Payment terms?
A:trade assurance/TT/West Union/Payple/LC/Cash and so on.

05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.

06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
