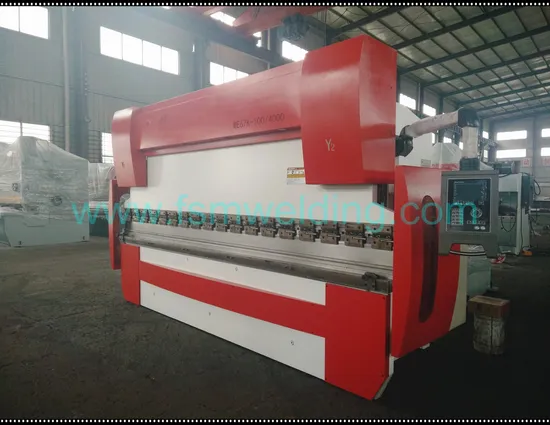

We67K Da53t CNC Electro-Hydraulic Servo Press Brake Machine

Product Description

Product Description - This machine is widely used in light industry, aviation, shipbuilding, metallurgy, instrument, electrical appliances, stainless steel products, construction and decoration industry, especially suitable for urban construction, highway light pole, power pole, car girder work-piece processing and manufacturing, etc.
- This series hydraulic press brake machine, adopts steel weld structure; vibration aging to release stress, the device with good rigidity and stability; the whole frame with good rigidity, work is stable, safety and reliable, easy to operate.
- To adopts DA53T controller specialized used in CNC press brake machine from DELEM company, and adopts electro-hydraulic scale servo valve from Siemens company - Germany, so the system work is stable, and with high make accuracy. on the system installed grating, electro-hydraulic scale valve, and electronic amplifier of valve to make a closed circle control system, thus inspect and control the relative location and synchronous accuracy between ram and worktable precisely, let the ram keep synchronous running, and assure the press brake depth and angle.
- To adopt whole steel weld structure, frame is solid, with high rigidity and good shock absorption.
- The mechanical structure of the device main composed of frame, worktable, ram, main oil cylinder and back gauge and so on. Perfect design and make art, can to permit the accuracy of male and use effetely.
- Make art process of main construction: steel plate storage → physical and chemical inspection → steel plate ball spray treatment → steel plate CNC flame cut → cutting the weld joints → assembly welding → gas shielded welding → vibration aging treatment → mechanical work of large floor type boring → milling machine and large gantry milling machine and so on → assembly.
- Using up-driven press brake design, work is stable, operate is easy.
- The frame, ram, worktable and other main components make by large floor type boring and milling machine in on time, to permit the geometric accuracy of them.
- The material of guider adopts advanced self-lubrication material, don't need to lubricating normally.
- The designed rigidity of worktable, upright column, ram, worktable is high, the deformation of worktable and ram is small during working, the work-piece with good straightness accuracy and keep angle same.
- The ram with pressure hold time relay function on bottom limit point, to permit the work-piece accuracy.
- Crowning mechanism: upper rapid clamping fixture, which has both quick fastening and crowning function.
Product Parameters

Model		Units	WE67K-200T/3200
Nominal pressure		kN	2000
Worktable length		mm	3200
Distance between uprights		mm	2520
Throat depth		mm	400
Ram stroke		mm	200
Maximum opening height		mm	540
Working pressure of hydraulic system		Mpa	26
Main motor power		KW	15
Quantity of control axis		/	Y1, Y2, X, R, Mechanical crowning
Control system		/	DA53T (DELEM, Netherland)

Detailed Photos
FAQ 1. Where is your factory located ?
Friendship Machinery CO., LTD (FSM) is located in Wuxi, Jiangsu, and about 40mins from Shanghai if take railway.
2. How can you guarantee your product quality?
From raw material purchase to production, FSM has strict restriction. And we will provide 1 year warranty time for all the products. ISO 9001 and CE certification can be provided.
3. How long is one order production time?
After you place a order, the production handling time is about 25-30 days. It will subject to our factory production schedule.
4. Can you accept special order?
Yes, we have our own R&D center , and our engineer can provide machine drawing according to your requirement.
5. Are your engineers available for oversea project ?
Yes, our engineers can be delegated aboard for machine installation and debugging.
