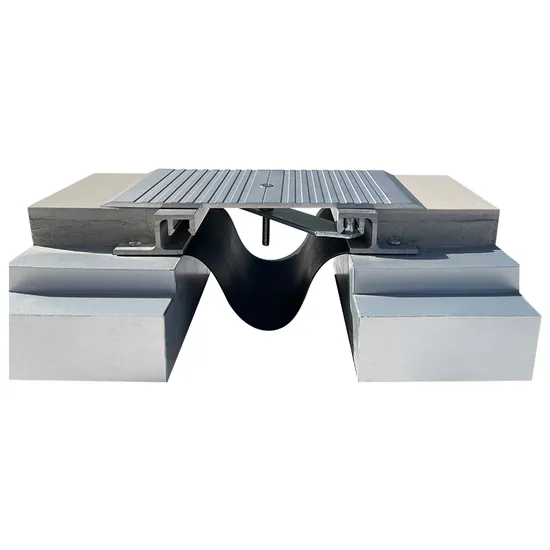

Building Expansion Joint Extruded Aluminum Covers Movement Control Joint System

Product Description

Product Description MSDG is aluminium recess mounted floor joint covers incorporating a galvanized center plate recessed to accept different flooring finishes. Joint sizes range from 50mm to 250mm. Suitable for interior and exterior applications with wide joint openings and seismic movement requirements.

Model	MSDG
Material:	Aluminum Alloy(ASTM6063-T5)
Joint width:	50-250mm
Movement capacity:	+/-50%
Mounted:	floor to floor
Optional parts:	fire barrier
Certification	ISO 9001 2008 Certificate, CE, ROSH, SGS
Sample time	Normal models: 5-7 working days
Delivery time	Normal models: about 10-15 working days depends on quantity
Marks:	N/M, usually no marks
Business type:	manufacturer
OEM	welcomed
Payment terms:	T/T, L/C, Western Union, Money Gram, Paypal

Detailed Photos
Our advantage:
Easy to install, can be installed into new or existing construction Economical
Systems available to accommodate 50% and 100% movement
Excellent weatherability
Resists impact and vibration
Designed to reduce noise and rattle from impact and load
Designed to accommodate lateral shear and limited vertical shear
Can be fire-rated
INSTALLATION:

(1) Install [expansion] [seismic] joint covers in accordance with the manufacturer's instructions. Align work plumb, level, and flush with adjacent surfaces. Rigidly anchor to substrate. Make allowances for change in joint size due to difference between installation and building operating temperatures.

(2) Set centering bars diagonally at 20 inches on center maximum (or 10 inches on center for heavy-duty
dels). Centering bars shall be fully engaged with the base members.

(3) Fire Rated Joint Covers: Install fire rated covers to requirements of applicable fire rated design. Install fire barriers and flame sealant as required.

(4) Water Barrier: Provide water barriers at exterior joints and where called for on Drawings. Provide drainage fittings where called for on Drawings.


3. Expansion Joint Packageing & Shipping
Packaging steps:
(1) 1 PC/poly bag → (2)Reasonable PCS/bundle and wrapped by EPE → (3) carton → (4)plywood box (or as your request)

All the cargoes will be inspected before delivery


FCL/ LCL, FOB/ EXW/ CFR/ CIF, our sales team is able to arrange the shippment for you.
Sample Time: Free samples can be sent for your reference in 5-7 working days
Delivery Time: Normally models about 10-15 working days depends on quantity
Payment Time: The safest and most flexible payment method for your choice: L/C, T/T, Western Union, Money Gram and others,(Normally 30%TT deposit, 70% before delivery)

Company Profile Nanjing MEISHUO Building Materials Co., Ltd was founded in 2000 and have more than 15years' experience in designing, manufacturing and installation of building Expansion Joint Systems(floor,wall and ceiling, roof), Movement Joint, Aluminum Entrance Mat, Stair Nosing, Aluminum Skirting Board, Landscape Grids, and so on
