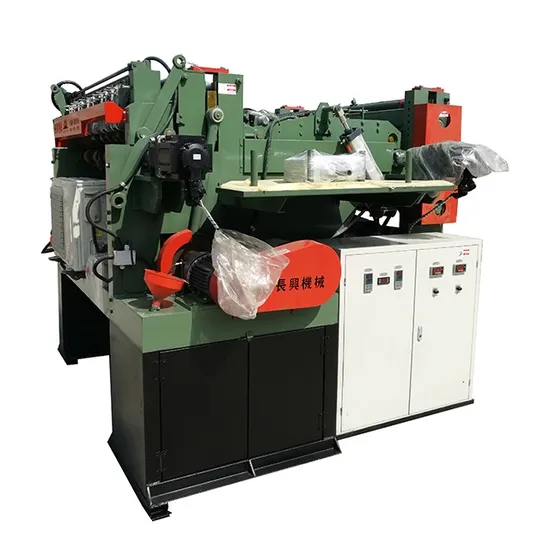

Cxct-4c1 Core Composer
| US$15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CXCT-4C1
Customized
Customized
Automatic Grade
Automatic
Structure
Planetary
Transmission Method
Hydraulic Pressure
Transport Package
Container Loading
Specification
100000cbm capacity
Trademark
jingyuan
Origin
Linyi, China
HS Code
8413603101
Production Capacity
5000sets/Year
Product Description
CXCT4-4C1 core Composer| Name | Model/Description / | Unit Price () |
| L type lone core Composer | CLS-4B1 |
| CLS-4()(Short core part) | |||||
Position applied | Name of part | Type | Brand | Quantity | |
| 1 | Main part | Main frame | + Channel steel+steel plate | Changxing special | 1 |
| 2 | Front driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 3 | Edge cutting driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 4 | Back driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 5 | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 | |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 6 | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 | |
Servo motor | EA180-8R5-3A-3PH-3.0KW | AHCHUAN | 1 | ||
| 7 | Driving device for bridge | Gear Reduce | BWDO-9 0.75KW | Dongli | 1 |
| 8 | Glue Tank | 6KW | CHANGXING | 1 | |
| 9 | Air cont | 1.5KW | HISENSE | 1 | |
| 12 | Knife | CHANGXING | 1 | ||
| 13 | Elec. Control system | PLC | AP360-BT-A | TECO | 1 |
| AP-16EMT | TECO | 1 | |||
| 14 | AP-4RD | TECO | 1 | ||
| PLC | XC2-14T-E | XINJIE | 1 | ||
| 15 | () | AH-102L | WECON | 1 | |
| 16 | DZ47-60 | Schneider | 8 | ||
| 17 | CJX2-1201 | Schneider | 7 | ||
| 18 | YJ2N-GS-24VDC | Schneider | 20 | ||
| CLS-4b Specification | |||
| Size(LXWXH) | 4.35*1.555*2.4 | ||
| Total power | 23.25KW | ()Speed | 36m/min |
| Feeding speed | 1.2-4.0mm | ()Veneer size | 3x6 4*8 |
| CLS-4b()(Long core part) | |||||
Position applied | Name of part | Type | Brand | Quantity | |
| 1 | Main part | Main frame | + Channel steel+steel plate | CHANGXING | 1 |
| 2 | Front driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 3 | Dimension clipper driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 4 | Back driving device | Reducer | PF142L1-8-P2-S2 | EFSHI | 1 |
Servo motor | EA180-8R5-3A-3PH-3.0KW | ANCHUAN | 1 | ||
| 5 | Glue Tank | Heating rod | 4.5KW | CHANGXING | |
| 6 | Heating Rod | 1.5KW | |||
| 7 | Driving device for bridge to stacking frame | Gear reducer | BWDO-9 0.75KW | Dongli | 1 |
| CLS-4b Specification | |||
| Size(LXWXH) | 2.97M*1.555M*2.4M | ||
| Power | 15.75KW | Output | 4-6P/min |
| 1.5-4mm | |||
| (Stacker) | |||||
Name of part | Type | Brand | Quantity | ||
| 1 | Main frame | + | Changxing special | 1 | |
| 2 | Driving device for lifting shaft of stacking frame | Motor | YEJ-100L1-4 2.2KW | LIJIU | 1 |
| Reducer | WPDS-100-B 2.2KW | XIAOYU | 1 | ||
| 3 | Driving device for Climbing of stacking frame | Motor | 1.1KW | Dongli | 1 |
Device for out-feeding | Gear Reducer | BWD-1-59-1.5 | Dongli | 1 | |
| CLS-4b Specification | |||
| Size(LXWXH) | 3.75M*1.9M*2.6M | ||
| Overall() | 7m*9m | ||
| Power | 4.8KW | Output | 4-6P/min |
| Thickness | 1.5-4mm | ||
PLEASE CONTACT ME IF YOU NEED MY HELP
JACK YANG
