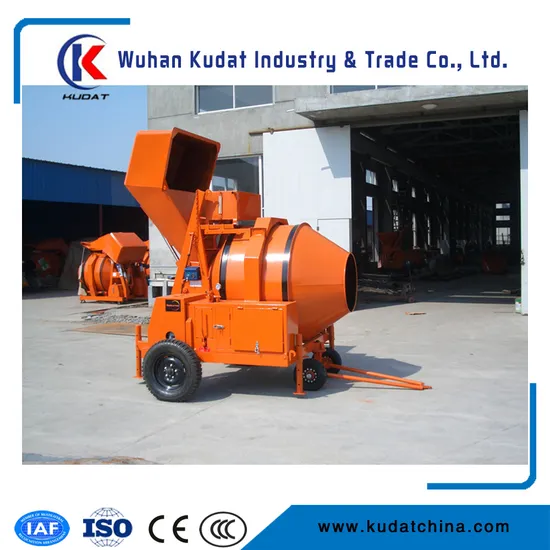

4 Wheels Mobile Cement Mixer Rdcm350
| US$4,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RDCM350-11DHB
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
25m²/h
Feeding Height
1370mm
Vibrating Amplitude
1.1mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Capacity of Discharge
350L
Capacity of Loading
560L
Capacity of Water Tank
110L
Drum Rotating Speed
13r.p.m
Capacity Per Hour
10-14m3/H
Power of Diesel Engine
15HP
Power Source
Diesel Engine, Single Cylinder, Water-Cooled with
Max. Towing Speed
20km/H
Overall Size
3250*2240*3200mm
Weight
1790kg
Transport Package
Nude in Container
Specification
ISO9001
Trademark
kudat
Origin
China
HS Code
8430
Production Capacity
100 Units/Month
Product Description
Description:Diesel Concrete Mixer is mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
Diesel Concrete Mixer is featured by diesel engine power, wire rope tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
RDCM350-11DH diesel concrete mixer
Capacity of discharge 350L
Capacity of water tank 110L
Capacity per hour 10~14m3
Power of diesel engine 15HP
Diesel and Hydraulic tipping hopper
| Model | RDCM350-11DHB(JZR350) |
| Capacity of discharge | 350L |
| Capacity of loading | 560L |
| Capacity of water tank | 110L |
| Drum rotating speed | 13r.p.m |
| Capacity per hour | 10-14m3/h |
| Power of diesel engine | 15HP |
| Power source | Diesel engine, single cylinder, water-cooled with radiator with battery starter |
| Max. towing speed | 20Km/h |
| Overall size | 3250*2240*3200mm |
| Weight | 1790kg |
| Diesel and Hydraulic tipping hopper | |
