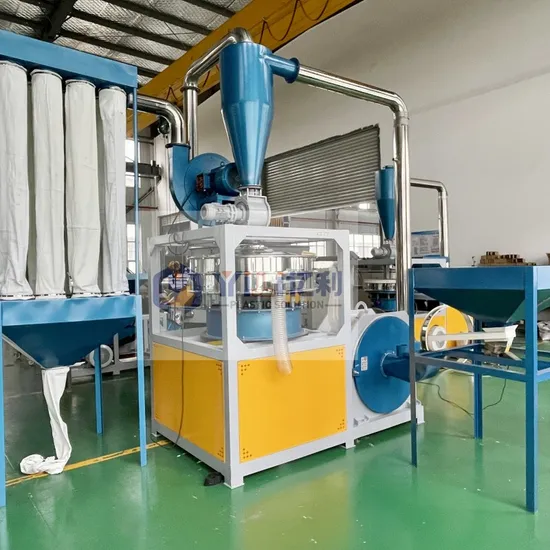

Advanced PE Milling Machine with Powerful 30-110kw Motor Capacity

Product Description

Applications:The SMP Plastic Milling Machine stands out as a key player in the realm of PVC recycling, especially for pipe and profile regrind. Seamlessly integrating with shredders and granulators, it crafts a harmonious and efficient recycling system, impeccably handling in-house production waste. Moreover, when it comes to Rotomolding applications, the PM Pulverizer is indispensable, transforming PE into the finely milled powder essential for the production process. A crucial part of this journey is the screening machine, ensuring the precision of output size, optimal distribution, and smooth flow properties of the finely ground material.
Technical Specifications:

Model	SMP-300	SMP-400	SMP-500	SMP-600	SMP-800
Disc Diameter(mm)	300mm	400mm	500mm	600mm	800mm
Dimension L*W*H(mm)	3700*1500*3700	3800*1600*3800	3900*1700*3900	4000*1800*4000	4300*1900*4300
Main Motor(kw)	11-15	22-30	30-37	45-55	75-90
Air Blower(kw)	3	4	5.5	5.5	7.5
Vibrating Motor (kw)	0.55	0.55	0.75	1.1	1.1
Capacity (kg/h)	30-50	50-120	120-200	200-350	400-600

General descriptionOur Waste Plastic Pulverizer Machines boast a versatile range of disc diameters from 300 to 800 mm. These state-of-the-art machines deliver high-speed, precision grinding for medium-hard, impact-resistant, and friable materials. The innovative process begins by introducing materials into the center of a vertically fixed grinding disc, perfectly aligned with a high-speed rotating counterpart. Driven by centrifugal force, materials journey through the grinding area, culminating in a fine powder collected via a sophisticated blower and cyclone system. Tailor the machines to your needs with options for one-piece grinding discs or segmented designs, ensuring unparalleled adaptability. Technical Features: 1. Experience unmatched durability with our novel disc design, boasting high-quality performance and strong resistance, effectively doubling the lifespan of conventional grinding discs.
2. Our state-of-the-art professional bearings offer high rotational speed, operating efficiently with a single drive motor. This innovation ensures optimized grinding and significant reduction in operational time and engineering oversight.
3. Maintenance is a breeze with our user-friendly design—simply open the door for easy cleanup and upkeep.
4. Enjoy a dust-free environment with our entirely sealed milling process, ensuring no particulate leakage.
5. Experience the future with our fully automated system that takes care of feeding, discharging, and sorting with unmatched precision.
6. Fine-tuning the grinding gap is hassle-free; utilize the feeler gauge and adjustment bolts for precise calibration.
7. Our dual cooling system, featuring both water and wind, maintains optimal operating temperatures.
8. An extensive array of optional accessories allows for professional, customized solutions tailored to your budget and processing needs.
Advantages: Effortless cutting gap adjustment
Versatile choice between discs and segments
Low drive power yet delivers high throughput
Revolutionary design with unmatched efficiency
Extensive range of adaptable accessories
User-friendly temperature management
