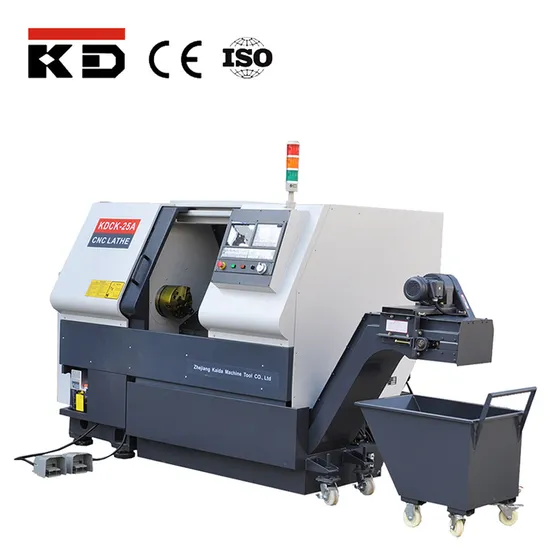

Advanced Slant Bed CNC Lathe with Fanuc/Siemens Controls
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDCK-25
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed
500mm
Spindle Bore
62mm
Tool Turret
8 Way
Controls
Fanuc or Siemens
Turret
Hydraulic Turret
Chuck
Hydraulic Chuck
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
410 Sets/Year
Product Description
PRODUCT SPECIFICATIONS| MODELS | KDCK-25 |
| CAPACITY | |
| Max. swing over bed | Ф500mm |
| Max. cutting diameter for disc parts | Ф300mm |
| Max. cutting diameter for axle parts | Ф250mm |
| Max. length of workpiece | 420mm |
| TRAVEL | |
| Max. cross travel(X) | 180mm |
| Max. longitudinal travel(Z) | 500mm |
| FEED | |
| Rapid feed for axis X | 12m/min |
| Rapid feed for axis Z | 20m/min |
| SPINDLE | |
| Max. speed of spindle | 3000rpm |
| Spindle nose | Ф170mm/ A2-6mm |
| Spindle bore | Ф63mm |
| Type of spindle motor | Variable frequency |
| Spindle motor power | 7.5/11kw |
| Hydraulic chuck | 8″ |
| TOOL POST | |
| Tool number | 8 |
| Outside diameter of cutting tool shank | 25×25mm |
| Inner dia. of cutting tool shank | Ф40mm |
| TAILSTOCK | |
| Tailstock sleeve dia. | Ф63mm |
| Tailstock sleeve travel | 115mm |
| Taper hole of tailstock quill | M.T.No.4 |
| OTHERS | |
| Repeatability | ≤0.006mm |
| Min. input | 0.001mm |
| Bed structure | 30° slant bed (two pieces of bed stand) |
| Overall dimensions(L×W×H) | 1950×1650×1680mm |
| Net weight | 3400kg |
PRODUCT CONFIGURATION
