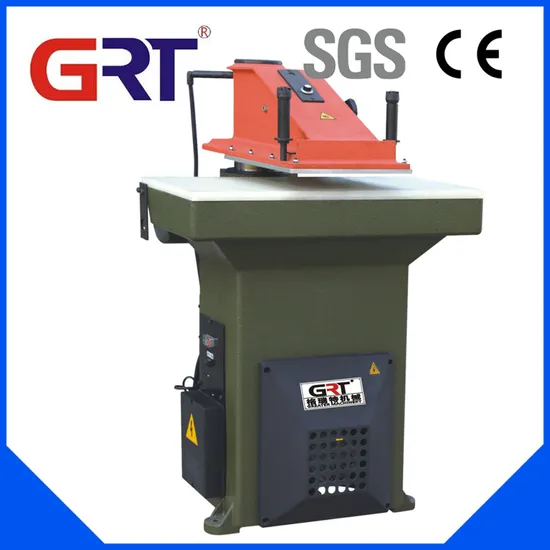

Cutting Press/Clicker Press/Clicking Machine/Atom Cutting Press -Atom Quality
| US$2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GRT-S
Condition
New
Certification
CE
Function
Cutting Machine
Pump
Made in Taiwan
Valve
Made in Taiwan
Press Switch
Made in Italy
Ring
Made in Italy
Cutting Switch
Made in Germany
Classification
Cutting Machine
Type
Shoes
Automatic Grade
Automatic
Transport Package
Wooden Case
Specification
20T
Trademark
GRT
Origin
Yancheng China
HS Code
84532000
Production Capacity
2000PCS/Year
Product Description
Product DescriptionUSE AND CHARACTERISTICS
1. The machine is applicable to cutting of various nonmetal materials by cutting die.
2. The oil way system specially designed can conveniently adjust the rocker height.
No adjustment is needed after the height of cutting die is changed.
3. High speed and low energy consumption. With only power of 0.75KW, it can output the cutting force of 22T.
4. To meet the need of frequent replacement of cutting die of different sizes, another type of machine that can timely output three kinds of cutting force is available for selection.
5. Ductile cast iron body made the machine be used for a very long time and small noise.
Machine configuration:
Pump and Valve: Made in Taiwan
Sealing ring: Made in Italy
Press switch: Made in Italy
Cutting switch: Made in Germany
THE MACHINE INCLUDE PALLET, HYDRULIC OIL, CUTTING BOARD, TOOLS AND SPARE PARTS.
Product Parameters
| Model | GRT-S22 | GRT-S27 | GRT-S27K | GRT-S27L |
| Maximum cutting force | 22T | 27T | 27T | 27T |
| Table area | 900×430mm | 1000×500mm | 1000×500mm | 1000×500mm |
| Swing arm width | 370mm | 370mm | 500mm | 610mm |
| Cutting stroke | 90mm | 90mm | 90mm | 90mm |
| Motor power | 1.1KW | 1.5KW | 1.5KW | 1.5KW |
| Packing size | 1050×1000×1500mm | 1100×1100×1600mm | 1100×1100×1600mm | 1100×1100×1600mm |
| N.W(with oil) | 650kg | 930kg | 1000kg | 1030kg |
| G.W | 740kg | 940kg | 1030kg | 1050kg |
Certifications
Packaging & Shipping
