Shrimp Seasoning Chicken Seasoning Powder Ribbon Mixer

Product Description

.

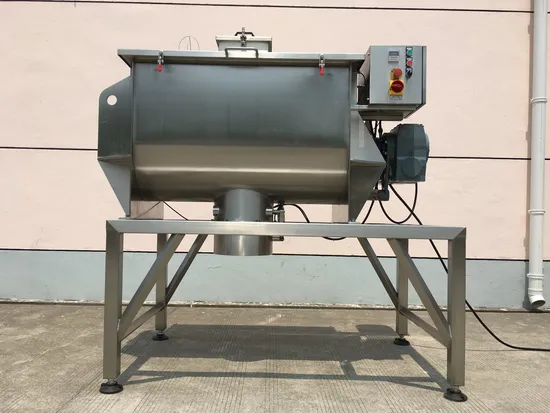

Horizontal Ribbon Mixer
Ribbon Mixer consists of horizontal U shape mixing vessel, drive system and ribbon agitator. The mixing element is combined with inner and outer double helical ribbon agitator. The outer ribbon moves materials into center direction and inner ribbon moves the materials in opposition direction to shape radially and laterally movement. Finally, the material will be discharged at center discharge valve. Ribbon Blender is an efficient and versatile blending machine for mixing of dry granules & powders homogeneously. Various materials can be mixed in ribbon mixer through a gentle way, especially in food material mixing. Furthermore, high speed chopper is also available to break some lumps during blending process
Applications:
1Dry Powder/solid particle
Dry Powder with minor liquid additives via spraying barSlurry
Features: Ribbon and Paddle agitator design as alternation Gentle mixing for fragile materials Easy cleaning and maintenance Food Grade Packing Gland Seal GMP design with FDA certificate of non-metal part of mixer
Drying/cooling jacket and vacuum design is optional Heavy Duty Design Batch or Continuous Mixing Process Main Technical Data

Model	DH-JD-200	DH-JD-300	DH-JD-500	DH-JD-1000	DH-JD-1500	DH-JD-2000
Effective Volume	200L	300L	500L	1000L	1500L	2000L
Fully Volume	284L	404L	692L	1286L	1835L	2475L
Turning Speed	46rpm	46rpm	46rpm	46rpm	46rpm	46rpm
Total Weight	250kg	350kg	500kg	700kg	1000kg	1300kg
Total Power	4kw	5.5kw	7.5kw	11kw	15kw	22kw
Length(TL)	1370	1550	1773	2394	2715	3080
Width(TW)	834	970	1100	1320	1397	1625
Height(TH)	1647	1655	1855	2187	2313	2453
Length(BL)	888	1044	1219	1500	1800	2000
Width(BW)	554	614	754	900	970	1068
Height(BH)	637	697	835	1050	1155	1274
Radius(R)	277	307	377	450	485	534
Power Supply	3P AC208-415V 50/60Hz
