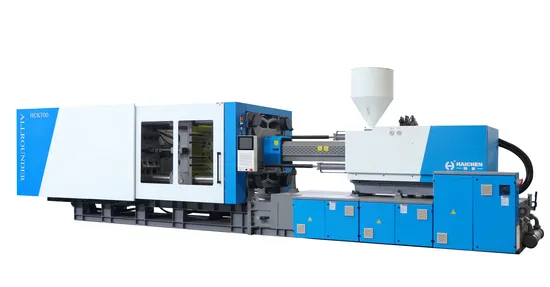

Haichen 700 Tons Injection Molding Machine
Basic Info.
Model NO.
HCK-700
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE
Selling Units
Single Item
Struction
Hot Runner Pneumatic Valve Gate
Machine Weight
33ton
Factory
More Than 20 Years Experience
Product Name
Pet Preform Injection Molding Machine
Machine Type
Horizontal
Injection Rate (G/S)
1393
Clamping Force (kN)
7000
Heating Capacity (Kw)
47.0
Pump Motor (Kw)
38+42
Hopper Capacity (Kg)
100
Machine Dimension (M*M*M)
10.3*2.25*3.5
Transport Packaging Materials
Wooden
Distance Between Platens (mm)
1930
Transport Package
Wooden
Trademark
HAICHEN
Origin
Zhejiang, China
HS Code
847710
Product Description
Haichen 700 Tons injection molding machineTechnical Specifications Clamping Force: 700 tons
Injection Unit: High-precision screw and barrel design
Mold Size: Customizable to fit various mold dimensions
Injection Pressure: Adjustable for different materials
Heating System: Efficient heating bands with precise temperature control
Cooling System: Integrated cooling channels for faster cycle times
Hydraulic System: High-performance hydraulic pump and cylinders for smooth operation
Control System: PLC-based with touchscreen interface
Applications The Haichen 700 Tons Injection Molding Machine is ideal for producing:
Automotive components (e.g., bumpers, dashboards, door panels)
Large household appliances (e.g., refrigerator parts, washing machine covers)
Industrial containers and crates
Plastic furniture and storage solutions
Other medium to large plastic products requiring high precision and strength
Advantages High production efficiency with minimal downtime
Versatile for use with various thermoplastic materials
Low maintenance requirements due to robust design
Environmentally friendly with reduced energy consumption
NINGBO HAICHEN SERVO INFORMATION TECHNOLOGY CO.LTD
TECHNICAL PARAMETERS
| INTERNATIONAL CLASS NO | HCK700 | |||||||
| A | B | C | D | |||||
| INJECTION UNIT | ||||||||
| Screw diameter | mm | 90 | 95 | 100 | 105 | |||
| Screw L/D ratio | L/D | 23.2 | 22 | 19.9 | 19.8 | |||
| Shot volume(theoretical) | cm3 | 3022 | 3367 | 4113 | 4514 | |||
| Injiection weight(ps) | g | 2750 | 3064 | 3743 | 4108 | |||
| Injection rate | cm3/s | 693 | 772 | 943 | 1035 | |||
| Injection pressure | Bar | 1896 | 1702 | 1393 | 1269 | |||
| Screw pressure | rpm | 130 | ||||||
| CLANPING UNIT | ||||||||
| Clamping force | kN | 7000 | ||||||
| Open stroke | mm | 960 | ||||||
| Space between tie bars(W×H) | mm | 970×920 | ||||||
| Max.Mold height | mm | 960 | ||||||
| Min.Mold height | mm | 400 | ||||||
| Ejector stroke | mm | 250 | ||||||
| Ejector force | kN | 160 | ||||||
| OTHERS | ||||||||
| Pump pressure | Bar | 175 | ||||||
| Pump motor power | kW | 38+42 | ||||||
| Heating power | kW | 47 | ||||||
| Machine dimension(L×W×H) | m | 10.3×2.25×3.5 | ||||||
| Oiltank cubage | L | 800 | ||||||
| Machine weight | t | 33 | ||||||
