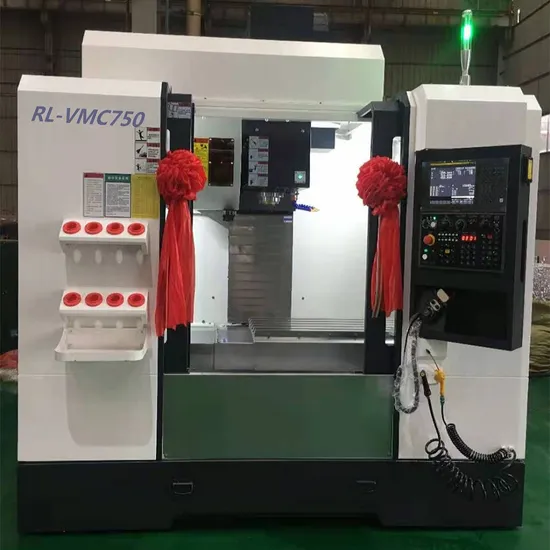

Hot Sales Vertical CNC Machining Center for Machinery Parts

Product Description

Hot Sales Vertical CNC Machining Center For Machinery Parts
Product Description
VMC750 vertical milling machine is composed
of base, column, middle sliding saddle, table,
headstock, operation panel, tool magazine,
pneumatic system, lubricant system, cooling,
lighting, protection system, CNC system,
electrical system.

Product Parameters

Specifications	unit	VMC750
X/Y/Z travel	mm	700/450/500
Distance from spindle nose to table surface	mm	120-620
Distance from spindle center to column surface	mm	570
Spindle Power	kw	5.5/7.5
Spindle speed	rpm	10000
Spindle Taper		BT40 (Φ120)
Positioning Accuracy	mm	±0.003
Repeat Positioning Accuracy	mm	±0.0015
Table Size	mm	900x500
Max.Table loading	kg	400
T-Slot		5-14-90
X/Y/Z rapid speed	M/min	48/48/48
Cutting Speed	mm/min	1-10000
X/Y/Z axes ball screw diameter		Φ32
X/Y/Z axes servo motor power	kw	2.0/2.0/3.0
Linear width X/Y/Z	mm	35/35/35
Guideway No. X/Y/Z		2/2/2
Slider No. X/Y/Z		4/4/4
Max.power consumption	kw	11
Air	Mpa	0.5-0.7
Power		380V/220V/415V/50(60)Hz/3ph
Ambient Temperature		0ºC-42ºC
Relative humidity		≤80%
Machine Net Weight	T	4.1
Overall Dimension	mm	2520x2200x2400

Detailed Photos

Taiwan(OKADA) original knife warehouse
Mechanical arm tool change, point-to-point
Tool change only 4 seconds
storage capacity number: 24

Taiwan Precision spindle (Royal/Posa/Cells)
high precision , high speed, 10000/min belt drive
big torque, low noise
Workbench
The surface of the guide rail is heat treated,
with high hardness and rigidity
Optical Machine
Precision casting, precision machining, precision assembly
Control System:
Optional: FANUC, Siemens, GSK other good control system

Company Profile

FAQ
Q1. What is the payment Terms ?
A1 : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
Q2. What is your trade terms?
A2 : FOB, CFR and CIF all acceptable.
Q3.When is the delivery time?
A3: If the machine you will order is standard machine, we can ready the machine within 60days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
Q4. What is your trade terms?
A4 : FOB, CFR,CIF or others terms are all acceptable.
Q5. What is your minimum order quantity?
A5: MOQ is one set,
Q6.What kind of packaging?
A6: We use plywood boxes to ensure the packaging quality durable, fully protect the safety of the cabinet, the appearance of bright and clean, smooth and beautiful, durable, low cost, heavy load, fear of the sun and rain without moths and so on.
Q7: what is your warranty for the machine?
A7: The warranty for the machine is 12 month. Warranty claim for parts that are replaced free of charge in the warranty term owning to failure or damage will be honored. However, artificial damage or damage due to force majeure is not covered under warranty.
