HDF Medium Density Fiberboard MDF Production Line Building Material Machine Equipment

Product Description

Energy plant,Drying system
Calorific value:18.5~65MW
Main fuel: Screening unqualified materials,Impurities,Dust,Sanding powder and other non-reusable combustible biomass waste in the production process.
Main components: fuel preparation system,combustion system, fine powder auto spray burning system, flue gas blending purification system, heat transfer oil system, steam system, dust removal and slag system,automatic control system.
Function: Supply heating for the process of drying,refiner,hot pressing,glue making.
Features: High efficiency,energy saving,environmental protection.
Energy plant for MDF production line

Heat consumption for reference

Capacity	100000m3/y		200000m3/y		400000m3/y		500000m3/y
Press	1.8	16.9	3.5	33.5	7.0	66.8	8.6	82.2
Refiner	4.1		8.2		16.4		20.0
Dryer	11.0		21.8		43.4		53.6
1.Calculation based on 22.5h/d,300days/y			2.Unit of heat consumption inMW			3.Deansity of M(H)DF 860kg/m3

Operation Interface
Operation interface of energy plant for M(H)DF line (With steam boiler) Dust collector system
Ultra-low discharge Wet ESP

The wet ESP is the most advanced wet electrostatic dust removal technology introduced by our company,
Combined with the operating conditions of the wood-based panel thermal drying system and developed energy-saving,efficient and ultra-low emission system suitable for the wood-based panel project.
The system can achieve an outlet particulate concentration of less than 10mg/Nm3.

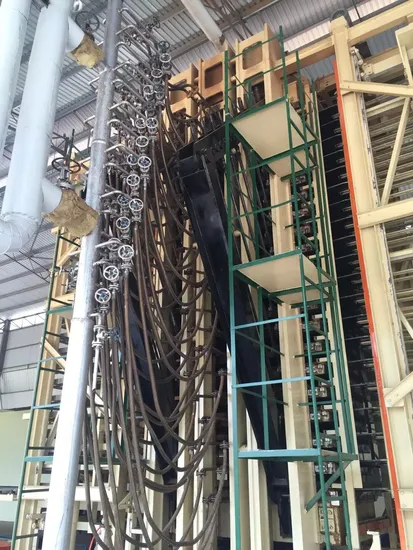

15-48 opening hot press with the size 4'*8'/9'/10'

Our Mechanical advantages 1. The hot press has a small gear opening, short auxiliary time, thin pre curing layer, and low sanding intensity. The machine operation is simple, the automatic detection is complete, and it can easily meet the requirements of automated production under unmanned control. 2. The products produced are in large format specifications and can be cut into non-standard sizes with different specifications according to user needs, meeting the diverse needs of users. The slab paving and transportation distance of the press is short, and the thickness symmetry of the paved slab is not easily damaged, and the finished slab will not deform. 3. The use of hot press machines has a low failure rate, long component life, and low maintenance costs.

Trust Xingteng(Ginzhuo), get your brand upgraded!

Linyi Xingteng Wood-based Panel Machinery Co., Ltd. was founded in 1993,it is wood-based panel complete production line R & D manufacturing and board production as one of the intensive enterprises, The company own three wood board factories,Shandong Heyang Wood Industry Co., LTD, Yingzhoushan (Shandong) Decorative materials Co,LTD and Malaysia Holy Crane Wood Product SDN BHD. The three wood-based panel factories and machinery manufacturing company support each other in terms of production process and technological innovationIt can also train the wood-based panel produciton process technical personnel for clients.

Brief Introduction:

The main products of Xingteng(Ginzhuo) are: M(H)DF,Particleboard(PB), oriented strand board(OSB) and veneer light oriented structural board (FOSB) and other wood-based board Mat-forming, Prepress, Hot press, Finishing lines,Thermal drying system,Ultra-low emission exhaust gas treatment system and other equipment production and process design,Electronic control system design,programming,debugging of the whole project.

WHY CHOOSE CHINA XINGTENG (GINZHUO) ?

• One stop, whole plant solution supplier for MDF / HDF, OSB and Particle board.
• More than 300 production lines of PB / OSB / MDF / HDF board running on market.
• More than 30 years experience in wood-based panel field.
• Over 200 engineers and technicians for R&D and customer service.
• 24-hour quick feedback for technical questions and service.
• We can provide free training for technical personnel.
• No matter which country you are in, we will provide on-site after-sales service.
• 3 Particle board factories, 2 Medium(high) density fiberboard factories, and 1 mechanical processing and manufacturing factory are all our own factories.

Please feel free to contact us for more information about Wood-based panel machinery!
