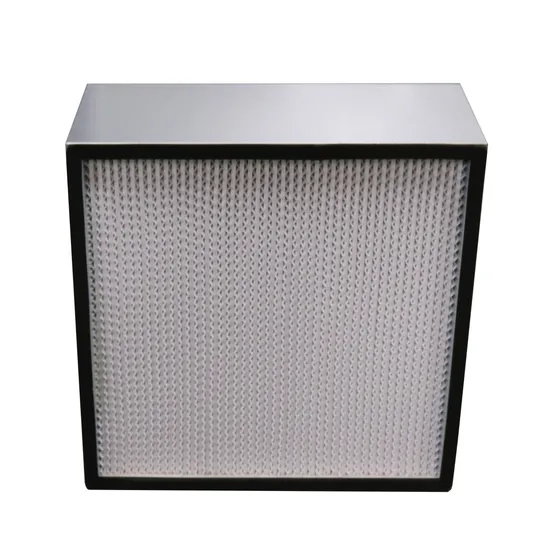

Industrial Air Filter Aluminum Frame 99.95% Deep Pleat HEPA Air Filter for Ventilation System OEM

Product Description

Aluminum Frame 99.95% Deep Pleat HEPA Filter for Ventilation System Product Description High efficiency filter with partition board is made of microfiber as filter material, plywood paper, aluminum platinum as partition board, and wood frame or aluminum frame glue and made of, with high filtration efficiency, low resistance, large air volume advantages, widely used with all kinds of bureau purification equipment and clean workshop. The standard fold number of high efficiency filter with separator is determined by the height of separator and the tightness of separator paper and filter paper when assembled.
Features External frame: galvanized frame Gasket: EVA
Filter media: Glass fiber filter
Separator: Hot melt adhesive
Maximum temperature: 80ºC
Maximum humidy: 80%
The advantage of Deep-Pleat filter is that:
* High efficiency
* Low resistance
* Light weight
* Convenient installation
1. Stable efficiency, low resistance, large dust capacity,
2. Good uniformity of wind speed, long service life,
3. Collect more than 0.3um dust particles, efficiency optional H10-H14
The use of High Efficiency Deep Pleat HEPA Air Filter:
Widely used in optical electronics, LCD liquid crystal manufacturing, biomedicine, precision instruments, beverage and food, PCB printing and other industries dust-free purification workshop air supply end;
Used in hospital, electronics factory, semiconductor factory, clean room, cleaning table and other occasions requiring high cleanliness.
Product Parameters

Model	Outside Dimensions(mm)	Rated air flow(m³/h)	Initial resistance(Pa)	Efficiency(class)
TR-YGB-1	320*320*220	500	≤220	≥99.97
TR-YGB-2	484*484*150	700	≤220	≥99.97
TR-YGB-3	484*484*220	1000	≤220	≥99.97
TR-YGB-4	726*484*220	1500	≤220	≥99.97
TR-YGB-5	968*484*220	2000	≤220	≥99.97
TR-YGB-6	630*630*220	1500	≤220	≥99.97
TR-YGB-7	945*630*220	2400	≤220	≥99.97
TR-YGB-8	1220*630*220	3000	≤220	≥99.97
TR-YGB-9	610*305*292	1200	≤220	≥99.97
TR-YGB-10	1220*610*292	4400	≤220	≥99.97

* Customizable Size Installation Instructions Notice:
Always open the plastic packaging in a clean room when installing HEPA/UHEPA filters. Do not rest your hand on the center of the filter!
Not even if there's a mesh guard!
Do not touch the internal filter material!
Company Profile Sichuan Huajie Purification Equipment Co.,Ltd was established in 2022 known as a sustainable development enterprise,specialized in Manufacturing, Research & Development and Marketing all kinds of air filter media.Company own a group of high level professional staff and advanced production,quality inspection equipment.
Related Products Our Main products:Filter cotton: Coarse filter cotton, Paint Fog Felt cotton, Booth Ceiling cotton;
Primary filter: Initial effect flat air filter,Primary folding air filter, Initial effect paper frame air filter, High temperature resistant primary air filter , Activated carbon primary air filter;
Medium-efficiency air filter: Bag air filter, Green and white cotton air filter;
Hepa filter: Mini-Pleat filter, Deep-Pleat filter,W type high efficiency air filter, High temperature resistant efficiency air filter, Liquid tank high efficiency air filter;
Air purify equipment: FFU, Efficient air supply outlet, Ultra-thin integrated air outlet ,Delivery window, Air shower.
Our products are widely used in Medical electronics, clean room, laboratory,HVAC System,Automobile manufacture,nuclear industry and other industries of air purification.
Certifications High quality create brand, all our products are passed ISO9001:2008 ,CE certification to make sure provide best products to our clients; Excellent service win good reputation and long term cooperation relationship between our business partners. Using Tianrui Air Filter to Save More Green for Our Home! FAQ 1. who are we?We are based in Sichuan, China, start from 2013,sell to Africa(15.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Europe(10.00%),South America(10.00%),Mid East(8.00%),South Asia(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Western Europe(5.00%),Domestic Market(5.00%),Oceania(5.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
HEPA Filter,Pre Filter,Medium Pocket Filter,HVAC Air Filter,FFU Fan Filter Unit
4. why should you buy from us not from other suppliers?
1. Turth Factory Supply you with Factory Price
2. 7-10 days Short Delivery Time base on Strong Producing Strength
3. With more than 10 Year OEM Service Experience in Air Filter Field
4. Products Quality are Guaranteed with ISO9001 & CE Certificate
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,German,Arabic,French,Russian,Korean,Italian.
