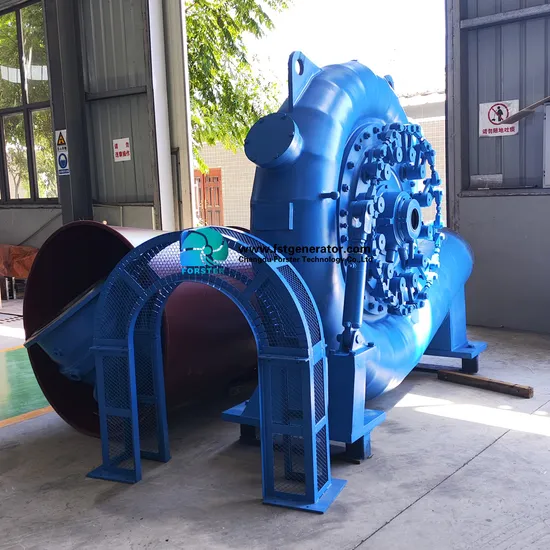

Hydro Electric Turbine 3MW Hydro Generator with Francis Turbine Generator

Product Description

Hydro Electric Turbine 3MW Hydro Generator with Francis Turbine Hydro Turbine Generator
Product Description Francis turbine is a kind of turbine suit to water head 20-300meters and with certain suitable flow.
It could be divided into vertical and horizontal arrangement. Francis turbine have the advantage of high efficiency, small size and reliable structure.
Horizontal Francis turbine unit, with horizontal shaft, could be 2 or three supports. Which is normally one stair arrangement. Simple structure, easier operation and maintainence.
Vertical Francis turbine unit, with vertical shaft, metal spiral case or concrete spiral case. With adjustable guide vane, and stay ring etc parts, are suit to runner diameter bigger than 1000mm. Our engineer will select the most suitable Francis turbine for your hydro power project.
Technical Specifications

Power range	100KW-5MW
Water head	12m - 290m
Water Flow	0.98 m3/s - 36.26 m3/s
Material	Steel plate/Stainless steel
Speed range	500rpm-1000rpm
Installation method	Horizontal installation / vertical installation
Frequency	50hz/60hz
Efficiency	85%-93%
Guide vane	Counter Weight
Application	On-grid/Off-grid

Company Profile 1. You are a trading company or a manufacture?
We are a hydro turbine manufacture with over 60 years of experiences, we have facilities in Zigong City, pay a visit to our factory you will know more about us.
Hydraulic Electric 1MW Turbine Generator Hydro Hydropower Turbine Generator
2. How to choose a right turbine? There are so many models offering on your website. And how to calculate the turbine capacity?
Just tell me the water head, flow rate, our senior engineer will work out the solution for you. The turbine capacity: P=Flow rate(cubic meter/second) * Water head(m) * 9.8(G) * 0.8(efficiency).
Hydraulic Electric 1MW Turbine Generator Hydro Hydropower Turbine Generator
3. What information should I provide for getting the quotation?
We need to know water head, flow rate, voltage level, frequency, on-grid or off-grid running, automation level from you to work out the solution.
Hydraulic Electric 1MW Turbine Generator Hydro Hydropower Turbine Generator
4. When my turbine shut down, who can help me solve the problem?
You are free to call me day or night at my cellphone number + . I am sure our engineer able to fix the problem either by changing spare parts or remove something.
Hydraulic Electric 1MW Turbine Generator Hydro Hydropower Turbine Generator
Hydro Turbine belongs to customized products. We could design products according to your requirement. Could you give us the following parameters so that we could make a professional solution for your project.
1.Flow rate ( lit/sec or m³/sec?)
2.Water head ( m?)
3.Total power you need( KW?)
4.Frequency ( 50 hz or 60 hz?)
5. Voltage( V?)
6. On grid or off grid?
7. Voltage of transmission line if it is on grid( V?)
8. Elevation(MSL)
9. Is it clean fresh water(with our sand, stone and silt ect,.)
