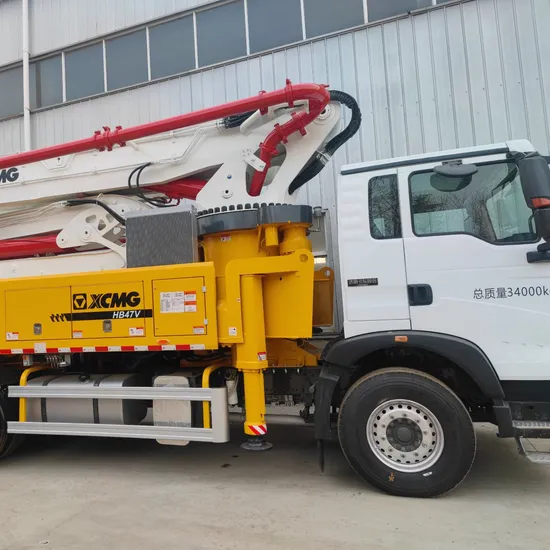

Used 47m Low Noise, Mobile Pump Truck Xg Pump Truck

Product Description

Product Description
Basic information
The XG HB47V is a 47-meter truck-mounted concrete pump truck designed for efficient and reliable concrete placement in construction projects. It is equipped with advanced technology for high performance and durability. Here's an overview of its features and a reference data sheet.
Parameter Specification

Model	HB47V
Maximum Vertical Conveying Distance	47m
Maximum Horizontal Conveying Distance	30m
Distributor Boom Turning Radius	42.1m
Theoretical Pumping Times	25 - 27 r/min
Pumping Concrete Pressure	10.2 MPa
Dimensions (L×W×H)	12470×2500×3990 mm

Key Features:
1. Efficient Pump Technology: The HB47V features more efficient skirt valve pump technology and more stable reversing buffer technology, ensuring reliable operation.
2. Powerful and Durable: It adopts a Sinotruk sitrak chassis, compliant with China VI emission standards, offering powerful output, large torque, high efficiency, energy conservation, and strong off-road performance.
3. Advanced Hydraulic System: The pumping system adopts electric control reversing, which is faster and results in less system impact, improving the actual pumping efficiency by more than 5% compared to conventional hydraulic control reversing systems.
4. Safety and Emission Reduction: The HB47V is designed with an ultimately safe boom and a lower structure of high rigidity, ensuring safety and longevity on the job site. It also effectively reduces emissions, contributing to a longer service life.
Detailed Photos

Product Parameters
XG's HB47V pump truck, detailed parameter list
Parameter Specification

Model	HB47V
Maximum Vertical Conveying Distance	47m
Maximum Horizontal Conveying Distance	30m
Distributor Boom Turning Radius	42.1m
Theoretical Pumping Times	25 - 27 r/min
Pumping Concrete Pressure	10.2 MPa
Dimensions (L×W×H)	12470×2500×3990 mm
Fuel Type	Diesel Oil
Emission Standard	National III
Steering Type	Steering Wheel
Number of Axles	3
Wheel Base	4500 + 1350 mm
Tire Specification	315/80R22.5
Wheel Track (Front Wheel/Rear Wheel)	2034/1804 mm
Complete Vehicle Kerb Mass	32870 kg
Front Axle	6870 kg
Middle/Rear Axles	26000 kg
Maximum Total Mass	33000 kg
Front Axle (Max)	7000 kg
Middle/Rear Axles (Max)	26000 kg
Seating Capacity of the Cab	2 Person
Maximum Speed	80 km/h
Minimum Ground Clearance	300 mm
Fuel Consumption per Hundred Kilometers	40
Chassis Model	ZZ5357TXFV464MF1
Engine Model	MC11.44 - 60
Maximum Net Power	324 kW
Theoretical Delivery Capacity	180 m³/h
Conveying Cylinder Inner Diameter x Stroke	φ260×2000 mm
Reachable Height of Distribution Boom	47.1 m
The Reaching Depth of the Distribution Boom	30.4 m

(Data is for reference only) Packaging & Shipping
