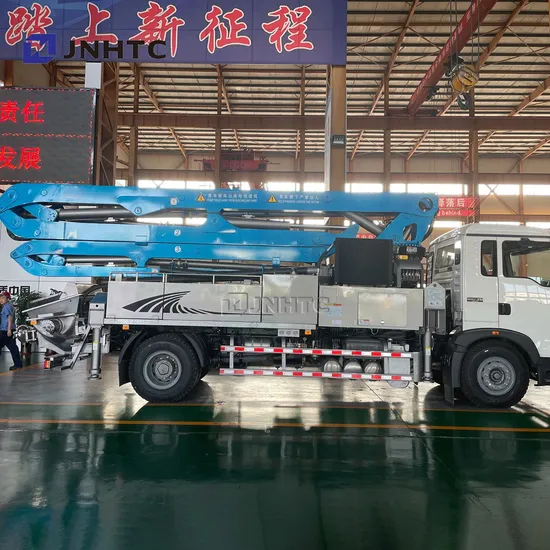

China Hot Selling 70m Concrete Pump Trucks
Basic Info.
Model NO.
concrete pump truck
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
120m²/h
Feeding Height
1370mm
Vibrating Amplitude
1.6mm
Certification
ISO9001: 2000
Condition
New
Color
Blue
Transport Package
According Customer Requirements
Specification
6800x2500x3200mm
Trademark
JNHTC
Origin
Jinan, Shandong, China
Production Capacity
500 Units Per Month
Product Description
China hot selling 70m concrete pump trucks| Model | ZZ1257S4641W |
| Engine | Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system Maximum output: 371PS (273kW) at 2000 rpm Maximum torque: 1560Nm at 1200-1500rpm Bore: 126mm Stroke: 130mm Displacement: 9.726L Compression ratio: 17.5:1 Specific fuel consumption: ≤197g/kWh Engine oil filling quantity: 19L Air compressors: WABCO Twin cylinders air compressors |
| Clutch | SINOTRUK's 430C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverse Ratio: 4.42 4.8 5.73 |
| Front Axle | New HF9 series, with drum brake system Steering with double T-cross section beam |
| Rear Axle | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. |
| Chassis | Frame: High-strength U-profile frame, all cold riveted cross members and reinforced subframe Front suspension: semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: semi-elliptic leaf springs and bogie springs Spare wheel carrier: with one spare wheel |
| Steering | ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1 |
| Brakes | Front and rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake |
| Wheels&Tyres | Rims: 8.5-20,10 hole-steel Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20 |
| Driver'sCab | Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner |
| Electrics | Operating voltage:24V, negative grounded Starter: 24V, 7.5KW Alternator: 3-phrase, 28V, 1540W Batteries: 2×12V, 165Ah Cigar-lighter, horn, headlamp, fog light, brake lights, indicators and reverse lamp |
| Dimensions inmm | Wheel base (mm): 4600+1350 Front wheel track (mm): 2022/2041 Rear wheel track (mm):1830/1830 Overhang(front/rear) (mm):1500/2900 Approach angle(°):16 Departure angle(°):12 Overall Dimension (mm): 10350x2496x3048 |
| Weight in kg | Permissible loading capacity (kg):13540 Dead weight (kg):11330 Gross vehicle weight (kg):25000 Front axle loading capacity (kg):9000 Rear axle loading capacity (kg):2*16000 |
| Performance | Maximum driving speed(km/h):102(reference data) Maximum gradeability (%):62 Minimum ground clearance(mm):314 Minimum turning radius (m):10.8 Fuel consumption(L/100km):36(reference data) |
Welcome you and your friends to visit our factory and company at any time.
