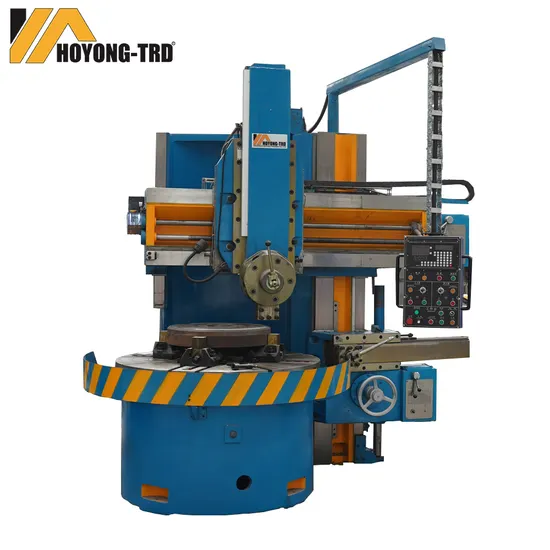

Single Double Column Vertical Lathe with Side Head PLC Control C5116 Turning Lathe Machine
| US$20,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C5116
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Transport Package
Plywood Case
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
8458990000
Production Capacity
10 PCS/Month
Product Description
VERTICAL LATHE FEATURES:
1. This machine is suitable for machining of all kinds of industries. It can process external column face, circular conical surface,head face, shotted,
severance of car wheel lathe.
2. Working table is to adopt hydrostatic guideway. The spindle is to use NN30( Grade D) bearing and able to turn precisely,Bearing capacity of bearing
is good.
3. Gear case is to use 40 Cr gear of gear grinding. It has high precision and little noise. Both hydraulic part and electrical equipment are used famous-brand
products in China.
4. Plastic coated guide ways are wearable.Centralized lubricating oil supplying is convenient.
5. Foundry technique of lathe is to use lost foam foundry (short for LFF) technique. Cast part has good quality.
SPECIFICATIONS:
| No. | Name | Unit | C516 | C518 | C5110 | C5112 | C5116 | C5120 |
| 1 | Max. turning diameter | mm | 630 | 800 | 1000 | 1250 | 1600 | 2000 |
| 2 | Table diameter | mm | 600 | 720 | 900 | 1000 | 1400 | 1800 |
| 3 | Max.height of workpiece | mm | 600 | 800 | 800 | 1000 | 1200 | 1250 |
| 4 | Max.weight of workpiece | T | 0.8 | 1.2 | 2 | 3.2 | 5 | 8 |
| 5 | Horizontal travel of tool post | mm | 500 | 570 | 670 | 700 | 915 | 1115 |
| 6 | Vertical travel of tool post | mm | 650 | 650 | 650 | 650 | 800 | 800 |
| 7 | Main motor power | KW | 11 | 22 | 22 | 22 | 30 | 30 |
| 8 | Overall size of machine | mm | 1750*1230*2580 | 2080*2621*3515 | 2187*2711*3515 | 2460*2330*3430 | 2886*2672*3980 | 3200*2800*4000 |
| 9 | Machine weight | T | 4 | 6 | 7 | 8.5 | 14 | 17 |
| No. | Name | Unit | C5225 | C5231 | CQ5240 | C5240 | C5250 | C5263 |
| 1 | Max.turning diameter | mm | 2500 | 3150 | 4000 | 4000 | 5000 | 6300 |
| 2 | Table diameter | mm | 2250 | 2830 | 2830 | 3200 | 4500 | 6000 |
| 3 | Max.height of workpiece | mm | 1600 | 2000 | 2000 | 2500 | 3150 | 3150 |
| 4 | Max.weight of workpiece | T | 10 | 10 | 10 | 32 | 50 | 50 |
| 5 | Horizontal travel of tool post | mm | 1400 | 1735 | 2150 | 2160 | 50~2765 | 3415 |
| 6 | Vertical travel of tool post | mm | 1250 | 1250 | 1250 | 1250 | 1600 | 1600 |
| 7 | Power of main motor | mm | 55 | 55 | 55 | 55 | 75 | 90 |
| 8 | Overall size of machine | KW | 5180*4560*4680 | 5520*6960*5725 | 6780*4850*5080 | 6870*5200*5850 | 12960×6781×8865 | 14260*6850*8865 |
| 9 | Machine weight | T | 33 | 38 | 39 | 48 | 100 | 110 |
