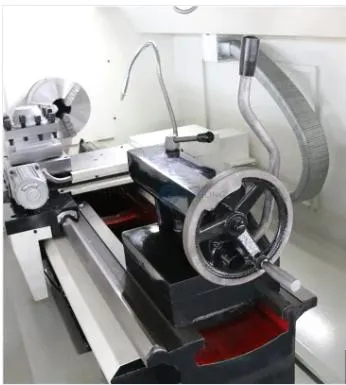

Automatic High Precision Flat Bed Horizontal CNC Turning Meatl Lathe Ck61125
| US$20,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK61125
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Manual
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Condition
New
CNC Sysem
GSK System
Fretuency Conwerer
22kw
Manual Chuck
800mm Single Action Four Claw
Cooing Pump
120W
Transport Package
Seaworthy Packing
Specification
3700x2550x2180mm
Trademark
JT
Origin
China
HS Code
8458110000
Production Capacity
1500 Sets/Year
Product Description
CK61125 series CNC lathe is an economical CNC machining lathe, which can be used for rough machining and finishing machining of mechanical parts. It is simple and reliable in structure, convenient in operation, economical and practical. The control system has comprehensive functions and can meet the needs of many industries. Especially suitable for automobile, machinery and other industries, rotary parts for efficient, high-volume, high-precision processing.
Product Parameters
| ITEM | UNIT | CK61125 |
| Swing over bed | mm | 1350 |
| Max. cutting length | mm | 1500,2000,3000,4000,5000 |
| Max. cutting diameter | mm | 1250 |
| Max. tuming diameter on sliding plate | mm | 900 |
| Type and code of spindle end | A2-11 | |
| Diameter of spindle hole | mm | 105 |
| Spindle speed range | rpm | 17~1000(Manual) |
| Spindle speed stage | Manual fourth gear, stepless speed change in gear | |
| Main motor power | kw | 15 (22 Main motors are optional) |
| X-axis rapid traverse speed | m/min | 6 |
| Z-axis rapid traverse speed | m/min | 10 |
| X-axis stroke | mm | 675 |
| Z-axis stroke | mm | 850~5850 |
| Diameter of tailstock sleeve | mm | 140 |
| Tailstock sleeve stroke | mm | 250 |
| Taper of tailstock spindle taper | Mt6# | |
| Distance from bed | mm | 755 |
| From the ground | mm | 1500 |
| Machine weight | kg | 6.3T/6.8T/7.3/8.1T/8.6T |
| Width of guide rail | mm | 700 (Heavy body) |
| Machine tool profile (long x wide x High) | mm | 3700-7300x2550x2180 |
| Max capacity | kg | 2000 |
