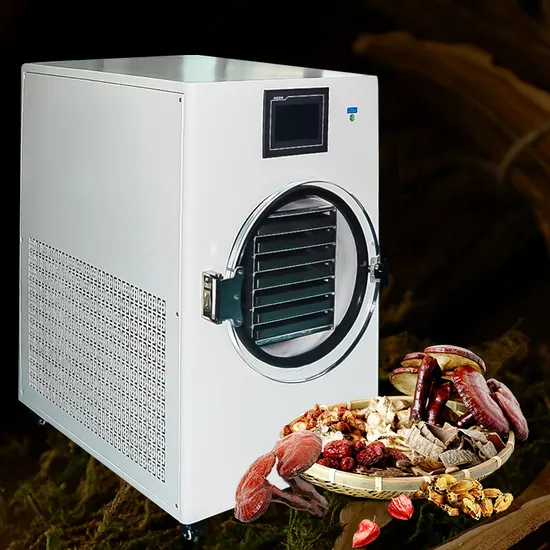

Small Food Drying Vacuum Freeze Dryer Home Use Food Drying Machine Lyophilizer

Product Description

Small Food Drying Vacuum Freeze Dryer Home Use
Food Drying Machine Lyophilizer
Product Description
Introduction:
Vacuum freeze drying technology, also known as sublimation drying, is a method to pre-freeze water-containing material and sublimate its moisture under vacuum. The original biological and chemical properties of freeze-dried items are basically unchanged, which is easy to keep for a long time. After adding water, they can be restored to the state before freeze-drying and maintain their original biochemical properties. Therefore, vacuum freeze drying technology is widely used in pharmaceutical, food, chemical, biological products and other fields.
Main Characteristics:
1. In situ pre-freeze drying;
2, temperature adjustable, controllable production process, according to different materials set different processes;
3, can set multiple sections, during the operation process can modify the program parameters, and online record vacuum drying curve and data;
4, touch screen, can set the boot password, display drying curve;
5, the square tray is not easy to deformation, easy to operate, easy to clean;
6, equipped with air charging valve, optional inert gas charging device;
7, the drying room adopts high light transmittance colorless transparent organic glass door, in the operation process can clearly observe the change process of the material;
8. Integrated structure, small size, easy to use, no leakage
9. Materials in contact with the product meet food grade requirements
10. The cold trap is made of stainless steel, which is anti-corrosion and easy to clean
11. With sample pre-freezing function
12. The cold trap captures ice evenly; strong ice capture ability
13. International famous brand compressor, which are high efficiency, energy saving, long service life, low noise.
14. Well-known brand vacuum pump, which are high pumping speed and higher ultimate vacuum.
15. Intelligently record and export data

Product Parameters

Product Model	SFD-4	SFD-6
Cold Trap Coil Temperature	<-40ºC (no-load)
Ultimate Vacuum	10pa (no-load)
Freeze-dried Area	0.4m2	0.6m2
Temperature control range	-35~60ºC
Handling Capacity	4kg / batch	6kg/ batch
Ice capture ability	6kg/24h	10kg/24h
Material Tray dimension	200mm x 450mm	330mm x 440mm
Material tray No.	4pcs	4pcs
Layer Spacing	45mm	50mm
Power Supply	220V 50HZ
Power	1100W	2300W
Weight	80KG	120KG
Dimension	510mm x 700mm 850mm	710mm x 850mm x 1080mm

Detailed Photos
Packaging & Shipping

Company Profile

Our certification:
FAQ
1. Are you the factory?
Yes, we're.
Established in 2008, we manufacture rotary evaporator, jacketed glass reactor, chiller etc.
2. What is the delivery time?
Generally speaking, the delivery time is 7-10 days for regular products. For the customized instrument, about 10~20 days is needed.
3. What's the warranty period? How do you provide this?
One year (12 months).
We have very strict inspection and testing to make sure the instruments which you received are high-quality and reliable.
If there's any problem, we'll provide you the on line solution in 12 hours. If the problem is caused by accessory, we'll provide you the spare parts for free. If the problem is caused by the instrument quality, and cannot be repaired, we'll ship you the new one.
