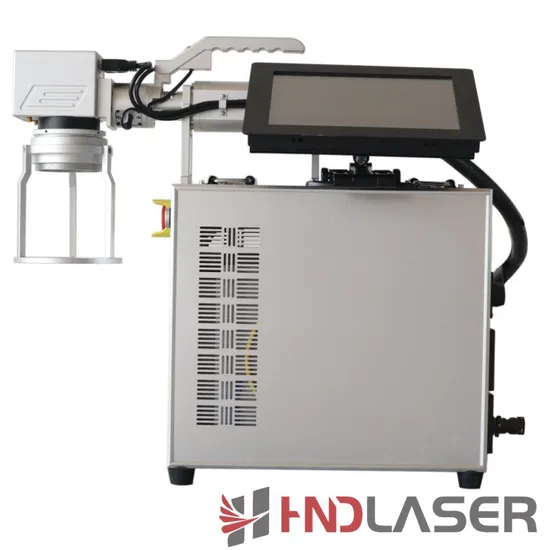

Advanced Hand Held Laser Marking Machine for Metal Engraving Portable Laser Marking Printing

Product Description

Handheld Fiber Laser Marking Machine
(Can be customized to your needs)
Compared with other handheld laser marking machines, this device has the advantage of supporting high-power lasers and better meeting customer customization needs. It not only supports high power, but also supports large formats, with the widest processing format of 200*200mm, which can meet the requirements of complex marking content.
1. Main advantages
High-power laser: supports up to 200W laser, provides powerful energy output, can quickly and deeply engrave and mark on various materials, especially for materials with higher hardness.

Large-format processing: The widest processing format of 200x200mm enables it to handle larger-area marking tasks, suitable for marking complex and fine patterns, texts and symbols.

Customized needs: It can be customized according to the specific needs of customers, flexibly adapt to different application scenarios and marking requirements, and provide more personalized solutions.
Diversified applications: It is widely used in various industries, including automobile manufacturing, aerospace, shipbuilding, mechanical equipment and other fields, and is suitable for marking and engraving of various large sizes, complex shapes and high-hardness materials.

2. Better Performance than Standard Model
DIY Computer Configuration:
Empower your creativity and productivity by configuring your own computers. Select high-performance PCs or laptops to perfectly match and optimize the laser equipment performance to suit your specific requirements.
High Performance Computing Requirements:
With a cutting-edge 3D galvanometer, enjoy enhanced computing capabilities powered by advanced CPUs and GPUs. This ensures efficient management of intricate 3D graphics and models, delivering superior marking quality.

NO.	Project	Parameter
1	Model number	HF10XX-D
2	Laser power	30W/50W/100W/200W (Optional)
3	Laser level	Class IV (IEC 60825-1)
4	Laser type	Pulse Fiber Laser
5	Wavelength	1064nm
6	Marking field	110*110/150*150/200*200mm (optional)
7	Marking depth	≤0.01mm
8	Marking speed	≤10000mm/s(optional)
9	Marking line width	0.01-0.2mm
10	Min character size	0.015mm
11	Repeat accuracy	0.01mm
12	Cooling method	Air-cooled
13	Laser source expected life	>100,000 hours
14	Standard user interface	10 inch touch display/PC/Laptop
15	Consumables	No
16	Temperature	0-45ºC
17	Power consumption	700 W
18	Electrical requirement	L/N/PE 100 - 240 VAC, 50/60 Hz

3. Wide Range of Applications
Offices and Studios:
Compact yet powerful, our laser marking station is specifically tailored for offices and studios. Seamlessly handle diverse small-batch and custom marking tasks with unmatched ease and efficiency.
Startups and Innovations
The ideal partner for startups and innovation hubs, maximizing space and cost-effectiveness. Swiftly adapts to various marking demands, supporting agile production and rapid prototyping with ease.
Research and Teaching:
A crucial tool in research and education, facilitating lab projects, student experiments, demonstrations, and training courses in academic settings with unparalleled reliability.
Outdoor Work:
With mobile power solutions, our station is perfect for in-field tasks from pickup trucks, vans, and more. It efficiently satisfies outdoor and on-site marking requirements, ensuring flexibility and reliability.

Materials		Reaction	Materials		Reaction
Metal	Stainless steel	√√	Plastic	PE	√
	Aluminum	√√		PP	-
	Anodized aluminum	√√		PVC	√√
	Brass	√√		PPR	√
	Coated metal	√√		ABS	√
	Copper	√		PET	-
	Gold, silver, nickel, platinum	√		Nylon	√
	Carbon steel	√√		MPP	-
	Titanium	√√		PC	-
Ceramics	Ceramic	√	Electrical and medical ceramic	Electrical and medical ceramic	√

Exceptional Reaction: √√ Admirable Reaction: √ Unsatisfactory Reaction: -
APPLICATION

Advantages & Accessories

Related Type
Advantage
Non-consumable
Say goodbye to consumable replacement costs
Operates solely on electricity
A robust one-time investment
Maintenance-free operation
Eco-friendly and sustainable
Innovative ink-free technology
A solvent-free process
Enjoy an odorless operation
Non-toxic and safe to use
Non-corrosive materials
Energy-efficient systems
Minimally wasteful in operation
Ensures 100% resource utilization
Produces zero emissions
Delivers permanent and resilient markings
Precision-controlled indentation depth
Resistant to oxidation effects
No color degradation over time
Enhances traceability and tracking
Assured safety and reliability
OPTIONAL ACCESSORIES
FOCUS AREAS

EXHIBITIONS AND FAIRS
PLANTS AND TEAMS
CERTIFICATION DISPLAY
Proudly certified by a renowned third-party organization, our machines are backed by a dependable warranty service. Should you need any assistance or support, our dedicated team is always at your beck and call.


COMPANY INFORMATION
ZHANGJAGANG HNDLASER TECHNOLOGY CO., LTD
HNDLASER HNDLaser Technology Co., Ltd. is a distinguished national high-tech enterprise, funded by HNDLASER Established in Zhangjiagang, we excel in seamlessly integrating research, development, production, and application of cutting-edge laser equipment. Our investment portfolio is robust, featuring Zhangjiagang HND Intelligent Equipment Co. and numerous other eminent enterprises.
Thanks to steady increases in annual R&D investments, our innovations have achieved notable market acclaim, ensuring a robust and stable production input across the entire laser industrial chain. HNDLASER is dedicated to a people-first, innovation-driven philosophy. We prioritize both technological advancement and talent cultivation, which fortifies our growing market presence and the respected reputation of our products.
