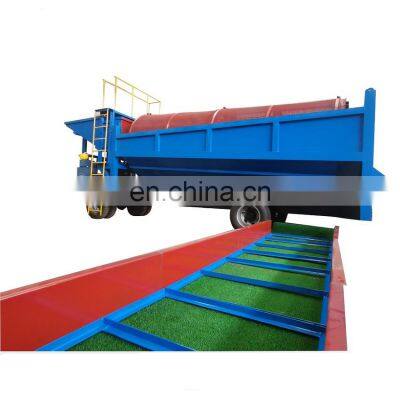

Mobile Gold and Diamond Washing Plant for Congo Gravity Separator Manufacturing Plant

Product Description

Product Description
Mobile Gold and Diamond Washing Plant for Congo Gravity Separator Manufacturing PlantProduct DescriptionYGTS series of Sinolion satisfy the various requirements of customers by 1. lowering initial investment cost (comparative price) 2. saving operational cost (outstanding durability and simple mechanical structure) 3. reducing any additional cost in the future (high productivity & mobility) 4. GTS series can precisely select gold dust in highest yield rate of 98%. 5. High gold dust gathering capability by long-time and non-stop operation Gold washing trommel working principle::1. Input of raw materials Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper. 2. Selection and cleaning of raw materials Raw materials of the trommel screen will be cleaned and selected by the rotation of trommel screen and by watering of the shower inside, run into the gold dust separate panel. 3. Collecting of gold dust separated Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected. technical parameters ModelCapacity(t/h)Power(kw)Diameter(mm)Length(mm)Discharge(mm)Input(mm)Dimension((mm)YGTS102010-304.0100020000-100≤3003390×1400×2140YGTS122530-505.5120025000-100≤3004146×1600×2680YGTS154550-12011150045000-100≤4008160×2300×2500YGTS154880-15011150048000-100≤4008460×2300×2500YGTS1848100-20015180048000-100≤4008460×2300×2700YGTS2060200-35030200060000-100≤4009680×2300x3420 Packaging & Shipping CaseCustomer Company Information
