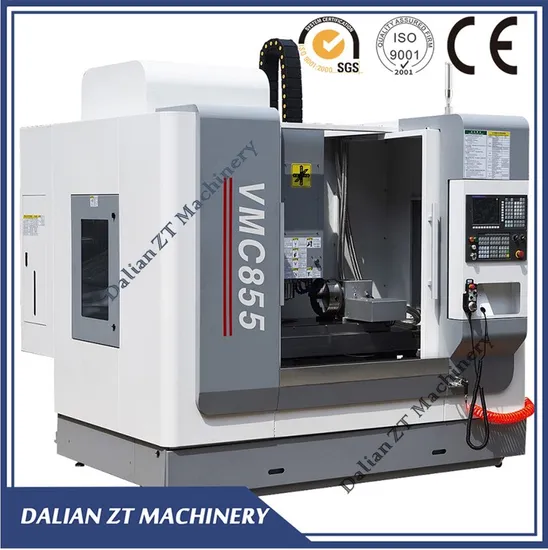

GSK 4-axis Controller High Speed VMC CNC Milling Machine VMC855 with 24 Tools

Product Description

Features
VMC855 is designed for machining complicated mold profile, automotive parts, and housing parts. It has distinguished advantage in machining mold, especially the small size mold. It has big torque output at low speed range, which is suitable for high strength steel and high temperature alloy steel which are difficult for machining.
Suitable to machine large machinery parts, automative part, mold etd;
With Taiwan high speed spindle to 10000rpm;
High accuracy; High speed; High rigidity; Low noise
Main technical parameters
1. Travel
X-axis:850mm
Y-axis:550mm
Z-axis:550mm
Spindle nose to table surface:120-670mm
Spindle center to column surface:595mm
2.Worktable
Table size: 1000×550mm
Max. loading: 600kg
T-slot width: 18mm
T-slot quantity: 5
3.Spindle
Spindle taper: BT40
Spindle speed: 8000rpm
Spindle motor: 7.5kw
4.Tool
Max.tool dia.:φ80/φ150mm
Max.tool length:200mm
Max.tool weight:8kg
5.Rapid movement
X,Y axis rapid feed: 24000mm
Z axis rapid feed: 20000mm
Cutting feed: 1-10000mm/min
CNC control system
The system has complete and reliable interlock, safety protection and fault diagnosis and alarm functions, equipped with RS232 standard and network communication interface, and computer program control and storage.


WORKSHOP
CUSTOMERS' VISITING & EXHIBITION
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
