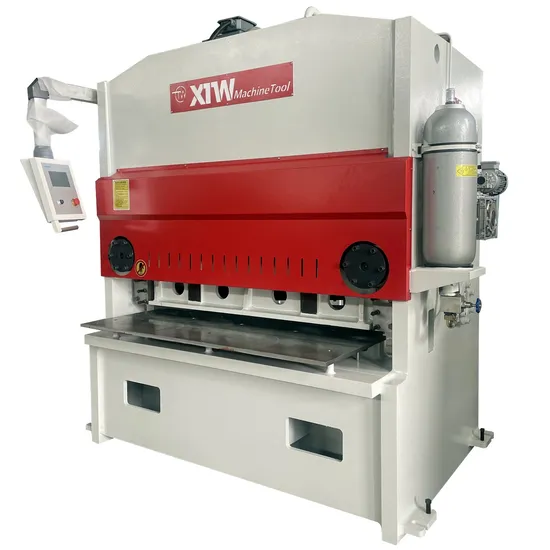

Thick Plate Cutting Machine, Hydraulic Heavy Duty Guillotine Shear

Product Description

Product Parameters

Heavy Duty Shearing Machine Specification
Model	Cutting Thickness (mm)	Cutting Width (mm)	Backgauge Range (mm)	Cutting Angle (°)	Worktable Height (mm)	Main Motor Power (KW)
QC11Y-40X2000	40	2000	20-100	30'-4°	1200	55
QC11Y-40X2500	40	2500	20-100	30'-4°	1200	55
QC11Y-40X3200	40	3200	20-100	30'-4°	1200	90
QC11Y-50X2000	50	2000	20-100	30'-4°	1200	90
QC11Y-50X2500	50	2500	20-100	30'-4°	1200	90
QC11Y-50X3200	50	3200	20-100	30'-4°	1200	90X2
QC11Y-60X2000	60	2000	20-100	30'-4°	1200	90X2
QC11Y-60X2500	60	2500	20-100	30'-4°	1200	90X2

Company Profile
NANTONG XINTONGWEI MACHINE TOOL CO.,LTD Located in the eastern part of the Central Jiangsu Plain, "the hometown of Chinese shearing, folding and rolling machine tools" - Haian Libao. It is adjacent to the Yellow Sea in the east, the Yangtze River in the south, Xinchang Railway in the west, and close to the 204 and 328 national highways. The company was formerly known as "the original Haian County Haiwei Machine Tool Factory." Specializing in the production of "Tongwei" brand series of shearing machines, bending machines, rolling machines, leveling machines, slitting machines, uncoiling and leveling production lines and other sheet metal processing equipment .The company has a group of professionals who have been engaged in forging design for a long time. Through the strong alliance with various casting and forging research institutes and major technical research institutes, the product structure is continuously improved, and the application of new technologies is in a leading position in the same industry. , so that the performance of the whole machine reaches the international advanced level, and it is an ideal substitute for imported machine tools. In the past few years, the company has developed a number of new structures and new technologies, and applied for a number of patents. The products have passed the provincial and municipal quality and technical supervision and inspections for many times, and have won the honorary title of "Contract-honoring and Promise-keeping" enterprises. The company's products are widely used and sold throughout the country and exported to Southeast Asia, West Asia, Africa, and Russia in recent years. And other European countries, have a place in the European and American markets. The company adheres to the tenet of "Quality First. Service First. Reputation First", takes customer satisfaction as the operating principle, and insists on providing customers with thoughtful pre-sale, in-sale, and after-sale services.
