4TF Log Planing Machine, Hydraulic Rounding Machine, Woodworking Machinery

Product Description

Product Description

1.Product brief introduction
If the wood log is rotary peeled directly without wood debarking, the bark fiber block blade seam easily. And there is the metal and soil sand in the bark, these things easily damage the knife blade during veneer rotary cutting work, so the wood bark must be removed before rotary veneer peeling. This machine is main equipment to remove wood bark and before veneer peeling work.
Product Parameters
2.Product parameter list

Model	ALVA-LD-4FT04
Working log diameter	Φ130~500mm
Rotary knife specification	1500 * 180 *16 mm
Diameter of roller	200 mm
Linear speed	50m/min
Reference output	120 m³/ day
Hydraulic system power	7.5kw
Power of single roller	11kw
Single roller reducer	350
Power of double roller	11kw
Double roller reducer	R87
Total power	29.5kw
Product dimension	3600 * 2200 * 1500 mm
Weight	4500kgs

3.Product superiority
1) After the bark peeling could protect peeling knife in veneer peeling step, improve veneer grade
2) Adopts rotary cuttingprinciple of non-chuck rotary lathe
3) Hydraulic pressure drive into the constructions, can quickly and effectively
remove bark and complete log the round work
4) One debarker machine can supply with two rotary lathe, save about five or six people
5) Hydraulic feeding, can debarking and roundup small size raw log
6) Competitive price and quality

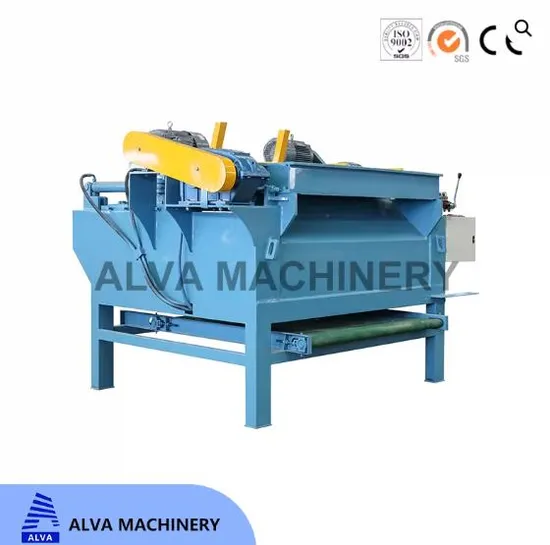

4.product picture
5.Main features
1) Online technical and engineers support.
2) With principle of peeling, removing the log's skin and straighting logs.
hydraulic driven feed mechanism,can quickly, efficiently put log removal of bark,
round.,one set debarker can supply 2 set peeling machine .
3) It saves the original manual peeling, rounding procedure, save 5-6 human .
