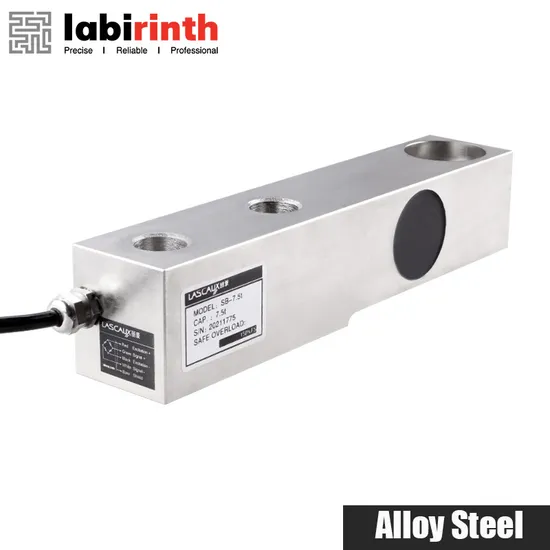

Sb 0.5-7.5t Hopper Belt Weighing Load Cell 1t 3t 5t Shear Beam Load Cell

Product Description

Application Scenarios

Sb 0.5-7.5t hopper Belt Weighing Load Cell 1t 3t 5t Shear Beam Load Cell
Product DescriptionDescription:
SB has a wide range from 0.5t to 7.5t. It is made of 40CrNiMoA alloy steel material, low impurity content, has good workability, small processing deformation, good fatigue resistance. Stainless steel is optional. One end fixed, one end loaded, can be used in combination. With the corresponding installation accessories can be used in small loadmeter or assembled into modules applied in the tank and other equipment, strong anti-bias load ability.
Features:
1. Capacities (t): 0.5 to 7.5
2. Compact structure, easy to install
3. High comprehensive precision, high stability
4. High quality alloy steel with nickel plating
5. Alloy steel or Stainless steel material
6. Module installing

Rated Load	t	0.5,1,2,3,5,7.5
Rated Output	mV/V	2.0±0.0050
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.02
Non-linearity	%R.O.	±0.02
Hysteresis	%R.O.	±0.02
Repeatability	%R.O.	±0.02
Creep/30 minutes	%R.O.	±0.02
Compensated Temp. Range	ºC	-10~+40
Operating Temp. Range	ºC	-20~+70
Temp. effect/10ºC on output	%R.O./10 ºC	±0.02
Temp. effect/10ºC on zero	%R.O./10 ºC	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000(50VDC)
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel
Degree of protection		IP67
The length of the cable	m	0.5-3t:4m 5t:5m 7.5t:6m
Wiring code	Ex:	Red:+ Black:-
	Sig:	Green:+ White:-
Tightening Torque	N·m	0.5-2t:98 N·m 3t:160N·m 5t:225 N·m 7.5t:1255 N·m

Applications:
Be suitable for the fields of Ground scales, platform scales, belt scales, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.
Traditional Industry Applications
As a manufacturer of core weighing and industrial measurement and control products, we provide accurate and reliable products and technical services for various traditional industries. These include scale manufacturing, metallurgy, petroleum, chemical, food, machinery, papermaking, steel, transportation, mining, cement, and environmental protection.
New Industry Applications
In the pursuit of new technology and continuous innovation, our products meet the measurement and control needs of modern emerging industries. For example, in applications for smart trash bins, unmanned retail stores, and intelligent vending cabinets, our sensors are well-suited to integrate seamlessly with these advanced devices.
Company ProfileLabirinth Microtest Electronics (Tianiin),Ltd.is located in Hengtong Enterprise Port in Tianjin, China.It We are a specialized manufacturer in China producing weighing sensors, force sensors (including tension sensors), and related accessories, providing comprehensive solutions for weighing, industrial measurement, and control.
With a focus on weighing and force sensor products, we strive for continuous innovation in research and development, professional manufacturing technology, and reliable product quality. We can provide more accurate, reliable, professional products, technical service, which can be applied for varieties of fields, such as weighing devices,metallurgy,petroleum, chemical, food processing, machinery, paper making, steel, transport, mine, cement and textile industries.As a professional manufacturer of core products for weighing and industrial measurement, we recognize our significant responsibility.We concentrate on making all kinds of load cells,including standard sensors; We can also custom-make products according to special requirements, offering both OEM and ODM services.We would like to take all challenges, based on developing new parts of weighing products, so as to satisfy varieties of needs from modern instruments and industrial control field.We would like to become your ideal partner, not only the field of sensors, With our twenty years study and practice in industrial measurement and relevant products, we are very happy to share our experience with partners. Electronic weighing measurement technology is changing our world, work and life, in order to provide more perfect, efficient, reliable products and solutions, we are willing to make progress, eventually to be an ideal partner for development.

Our advantages:
20 YEARS	ONE-STOP SOLUTION	PROVIDE DESIGN AND CUSTOMIZATION SERVICES	POWEFUL AND PROFESSIONAL TEAM	FASTER AND MORE EFFICIENT WEIGHING
After 20 years of product development and manufac turing history,we are rich-ex- perienced and trustworthy in load cells and accessories	We offer complete solutions of full measurement chain weighing and force measurement,which involves aluminum and steel load cells weighing display transmitters and measurement solutions.	We manufacture standard load cell products,which can also be designed and custom- ized according to your special requirements.	We own powerful and profes sional team with numbers of senior expert R&D engineers who focus on machinery,elec tronics,automation and many other directions.With 20years of industrial application accu- mulation, we make the applica- tion more professional.	Our vision is "enjoy fast weighing."We are committed to "faster and more efficient weighing.".and we can provide a series of products and solutions in this regard.

Our Services:Service standards: we are committed to provide a high quality and responsive service to all clientsThe fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 5 working days to reach from from our side to your side, which is very convenient for your business.
OEM ODM availableWe produce a wide range of sensor products, including single point load cells, s beam load cells, shear beam load cells, disk load cells, micro load cells, and weighing modules. Additionally, we offer on-board weighing systems, tension measurement devices, and weighing display transmitters, as well as various accessories and customized combinations.
Each year, we participate in major exhibitions such as the 2021 Guangzhou Unmanned Retail Expo, the 2023 Shanghai Weighing Expo, and the 2024 Nanjing Weighing Expo. We warmly welcome partners from around the world to explore our high-quality weighing load cell products and solutions. FAQ1. How to place an order for products?
et us know your requirement or application, we will give you a quotation in 12 hours. Then we will send the PI after you confirm the order.
2. What is the MOQ?
If we don't have it in stock, the MOQ is different according different weighing load cell models. If we have it in stock, we can ship you even 1 pc as sample.
3. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don't have it in stock, the lead time will be 10-30 days normally.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc. We will choose the safe and cheapest way for you to reduce your cost. Economic shipping way: by sea, by air transport .If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months. If the product has quality problem within 12 months, please return it to us, we will repair it; if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we canprovide you the after-sale service by e-mail, skype, trade manager, telephone and QQ etc.
7.What information do I need to provide before placing an order?
The size, capacity and usage are necessary. Besides, we may need some other parameters.
8.Are you a trade company or factory?
Our company is factory and directly sales.
9.How's the package?
Normally are cartons, but also we can pack it according to your requirements
10.Do you support drop shipping?
Yes, your drop shipping is available.
