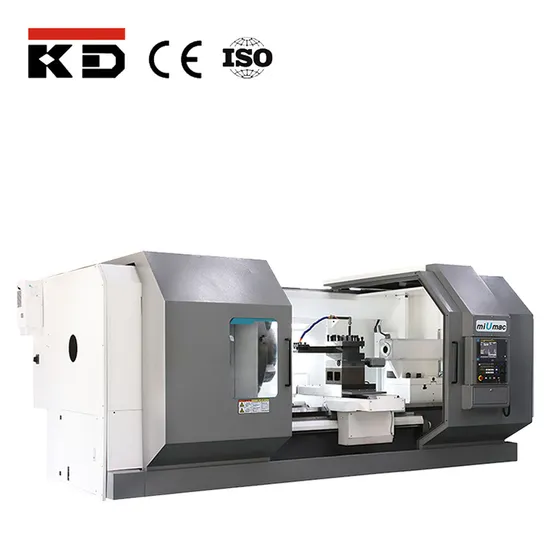

Heavy Duty CNC Lathe Model Ck61100c/4000
| US$20,000.00-200,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
CK61100C/4000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Tool Post
4 Way, 6 Way Is Optional
Features
with Mechnical in Head Box
Controls
Fanuc or Siemens or GSK
Power
22kw
Steady Rest
Standard
Swing Over Bed
1000mm
Spindle Bore
130mm
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
1100 Sets/ Year
Product Description
FEATURES AT A GLANCE PRODUCT SPECIFICATIONSITEMS | CK61100C | CK61125C | |
Max. swing over bed | Ø 1000 mm | Ø 1250mm | |
Max. swing over carriage | Ø 620 mm | Ø 870mm | |
Width of bed | 755 mm | ||
Maximum length of workpiece | 1.5/2/3/4/5/6/8m | ||
Max. turning length | 1.3/1.8/2.8/3.8/4.8/5.8/7.8m | ||
Max. weight between centers | 5000 kg | ||
Spindle nose | A2-15 | ||
Spindle bore | Ø 130 mm | ||
Cone hole diameter and taper of spindle hole | Metric Ø 140 1: 20 | ||
Steps of spindle speed(Manual) | 24(forward) 12(reverse) | ||
Range of spindle spec | 2.5~250 r/min | ||
Rapid feed for Z axis | 8m/min | ||
Rapid feed for X axis | 5 m/min | ||
Max. travel of Axis X | 600 mm | ||
Max. Input | 0.001 mm | ||
Tool post stations | 4 station | ||
Tool cross section | 40× 40 mm | ||
External diameter of tailstock sleeve | Ø 160 mm | ||
Taper of bore of tailstock sleeve | Metric Ø 80 | ||
Max. traverse of tailstock sleeve | 300 mm | ||
X/Z motor torque | 33/37Nm | ||
Spindle motor power | 22KW | ||
Power of cooling pump | 0.25KW | ||
Overall dimensions(L× W× H) | 6100× 2270× 2230mm | 6100× 2270× 2300mm | |
Net weight | 11500kg | 12300kg | |
Note: For each additional machine length of 1m, there will be additional net weight of 1100kg | |||
