China IBM288r LED Bulb Housing PC Cover Injection Blow Molding Machine

Product Description

Details Images

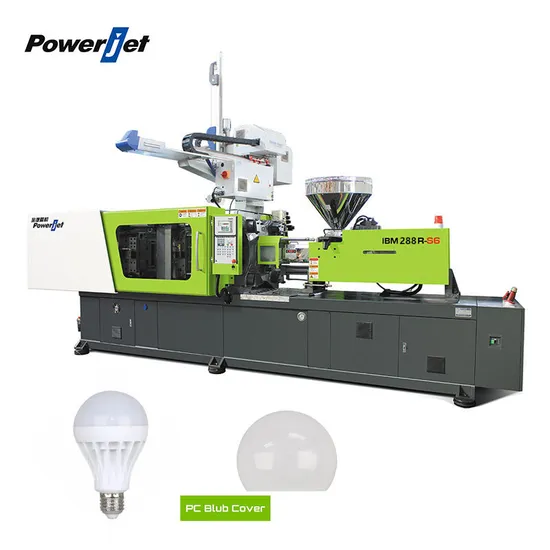

IBM288R-S6 Rotary Injection Blow Molding Machine
IBM-R Series Rotary Injection Blow Molding Machine with a rotary mold system for good surface finishing products like: LED bulb PC
covercosmetics bottle etc.
Clamping Force - 2000~3300(KN)
Driving System - Hydraulic
Motor Type - Servo
Applications - LED Bulb, Cosmetics Packaging & Bottle
FEATURES:
1:Automatic Product Line
Equipped with the robot for automatic production line to improve efficiency.
2:Rotary Accuracy
The rotary part is controlled by servo motor, which ensures the rotary accuracy.
3:Modular Mold Design
Modular design mold structure to reduce the production cost, if the product is changed, just need to change the relative mold parts.
4:Good Appearance Finish
The appearance quality is perfect without a parting line, suitable for the industry which is strict for the product appearance.
Products Description

DESCRIPTION			UNIT	IBM288R-S6
LAMPING UNIT	Clamping force	KN	2880
		Opening stroke	mm	550
		Max.datlight	mm	1300
		Platen size	mm	850*850
		Space between bars	mm	610*610
		Max.mold height	mm	750
		Min.mold height	mm	620
		Max. Rotary Center Distance	mm	650
		Min. Rotary Center Distance	KN	310
INJECTION UNIT	Screw diameter	mm	52
		Screw L/D Ratio	L/D	21
		Injection Pressure	MPa	226
		Shot volume	cm3	594
		Shot weight (ps)	g	530
		Injection rate	g/s	220
		Screw stroke	mm	280
		Screw speed	rpm	210
POWER UNIT	Hydraulic system Pressure	MPa	17.5
		Pump motor power	KW	30
		Heater power	KW	13.8
GENERAL	Oil tank capacity	L	425
		Machine weight	T	9.3
		Machine dimensions (L*W*H)	m	6.4*1.7*2.1

Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and blow molding machine. Powerjet was founded in 2000,occupying an area of 130,000 square meters. Annual production capacity has reach to 4000-5000 injection sets of. More than 20 offices have been set up in the global market, machines have been exported to more than 60 countries in the world. The machine specifications are complete, adapt to a variety of industries, cost-effective, and create high returns for customers. One-stop whole-process caring service.
Established distributors in multiple countries like Thailand, Malaysia, Indonesia, Vietnam, Uzbekistan, USA, Mexico, Brazil, and Pakistan, etc. With a global sales network, our local offices and agents can provide more convenient and sincere services. Agent In Worldwide
Setting Up Agent In More Than 20 Countries For Sales And Support
Lifetime Support
24 Hours Online Service And Overseas Installation & Maintenance
Spare Parts
We Supplying Screw, Motor, Control Panel And Plastic Mold For Machines
Operation Training
Support Training To Engineer For Setup, Processing & Troubleshooting
Plastic Mold Testing
Provide Testing Mold Service Before Customer Receiving The Machine
Project Cases


Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 20 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.
Q2: Delivery time
A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30days longer accordingly).
Q3: Where is your factory located?
A3: Our factory is located in No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
