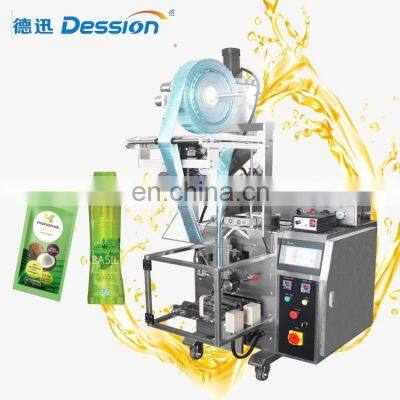

New design automatic cooking oil packing machine sunflower oil filling machine

Product Description

Product Description
Product Description
Dession liquid packing machine is suitable for the packaging of various liquid and sauces, such as soup,edible oil,liquid medicine,cream,seasoning sauce,honey,shampoo and shower gel etc.
According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.
1. The section where the material contact is stainless steel as the body of machine is optional for complete or partial stainless steel and all out equipments have passed the CE Standard.
2. Optional English or other languages screen display, easy and simple operation.
3. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.4. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing packaging speed and length of bags can be set to some extent without further adjustment and parts changing.
5. Bag-making, filling, sealing, cutting, counting can be achieved automatically and straightly.
6. Bag-making equipment can be changed according to specific requirement of customers and products.

Model NO.	DS-320Y
Measuring	Liquid Filling Pump
Bag Shape	Back Sealing / 3 Sides Sealing / 4 Sides Sealing
Packing Speed	30~50 bags/min
Filling Range	50~500 mm
Bag Length	40~200 mm
Bag Width	50~150 mm
Machine Size	L)640*W)700*H)1580mm

Easy Control Touch Screen
Language: Standard English and Chinese. Any language can be customized.
PLC: Imported PLC microcomputer with interface and frequency control enables bag parameter setting more convenient and easier.
Film Roller
The film can be replaced easily on the film roller.
Various films adaptable: OPP/CPP,OPP/CE,MST/PE/PET/PE.
Pneumatic liquid pump
the filling weight is adjusted,the texture of the machine is #304 stainless steel for the material contact parts.It is safe and
meets with the GMP standard.
According to the viscosity of the filled liquid, you can choose to replace the mechanical pump.
Bag Former
#304 stainless steel bag former is for shaping the film into a bag.
Different bag width needs different bag former.
Bag Cutting Device
High speed of fine and clean cutting and sealing bags.
Positioned stop function avoides sticking blades and wasting materials.
According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.
According to your needs, you can choose to replace or add the following configuration. For example, 3 sides sealing device, 4 sides sealing device, linking bag device, gas-filled device, easy tearing device.According to the consistency of the filling material, add a heating and stirring device or use the mechanical pump.
If you want to know more about the machine, please contact me！！！
SALES MANAGER: MR KENNY LEE
Mobile:+86 13380522184
Whatsapp / Wechat: +86 13380522184
Our Company
Certifications
Packing & Delivery
Payment
1.T/T and Western Union are accepted
2.30% deposit before production and 70% balance before shipment
3.All banking charges outside China are on buyers
Shipping
1.Upon receipt of payment , delivery date will be in 15-30 working days,
2.By Air, by Sea or by Express (DHL etc)
3.Shipment cost will depend on the destination, shipment way and the weight of the goods
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
