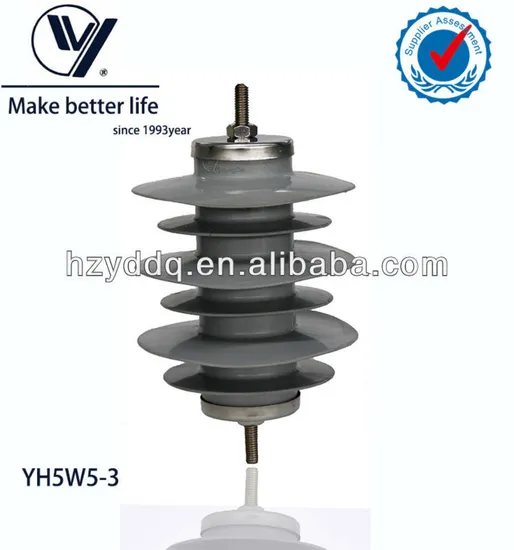

Exhaust Spark Arrestor Lightning Arrester
| US$0.10-0.20 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YH5W-3
Delivery Time
20days
Color
Grey
Transport Package
Carton
Trademark
YONG′DE
Origin
Zhejiang, China (Mainland)
Production Capacity
500 Set/Sets Per Day
Product Description
exhaust spark arrestor
| Type | YH5W5-3/8.1 | 4/10μS High current impulse kA | 65 |
| Rated voltage---------kV | 3 | Lightning impulse withstand kV | 45 |
| MOCV ----------------kV | 2.55 | Power frequency voltage withstand(dry/wet)kV | 10 |
| Nominal Current-------kV | 5 | 0.1S TOV--------------kV | 3.6 |
| Residual voltage of steep impulse----at 5kA(kV) | 8.8 | 1S TOV----------------kV | 3.45 |
| 8/20μS Residual voltage of lightning impulse current kV(Peak value)-----at 5kA(kV) | 8.1 | 10S TOV---------------kV | 3.3 |
| Residual voltage of switching impulse current kV (peak value)----at 1kA (kV) | / | 1200S TOV-------------kV | 3 |
| 1mA D.C reference voltage (kV) | 4.24 | Creepage distance ----mm | 272 |
| Line discharge level | 1 | Material employed in series non-linear resistor | Zinc Oxide |
| 2mS long duration impulse current A | 250 | Material of housing | silicon rubber |
drawing
running condition
| Working condition: | Environment temperature: -40--+40 degree | |||||||
| altitude:<1000m | ||||||||
| 48HZ<Rated frequency<62HZ | ||||||||
| Power frequency voltage should not be more than continuous running voltage | ||||||||
| Max wind speed should be less than 35m/s | ||||||||
| Earthquake intensity should be less than 7 degree | ||||||||
| If used in contamination area, should be noted in advance. | ||||||||
1. shipping details
| Product Name:3kV,5kA ,Lightning arrester(L,A) | Item No:YH5W5-3/8.1 | |
| Size:370mmX130mmX110mm with 3pieces per carton | Packing:carton with polyfoam insert parts | |
| MOQ:1sets | production capacity: 500 sets per day | |
| Payment Terms:T/T 30% before shipment,balance 70% L/C after received B/L | Weight:1.2kg/carton | |
| Trade Terms:FOB,CIF(or we can discuss details) | Loading Port:Ningbo/ Shanghai(Or as customer requirement) | |
| Loading Ability: | 20'GP | 4845sets |
| 40'GP | 9424sets | |
2. detail picture
