Multifunction Woodworking Table Saw Wood Cutter Two Sides for Excavator

Product Description

Multifunction Woodworking Table Saw Wood Cutter Two Sides For Excavator

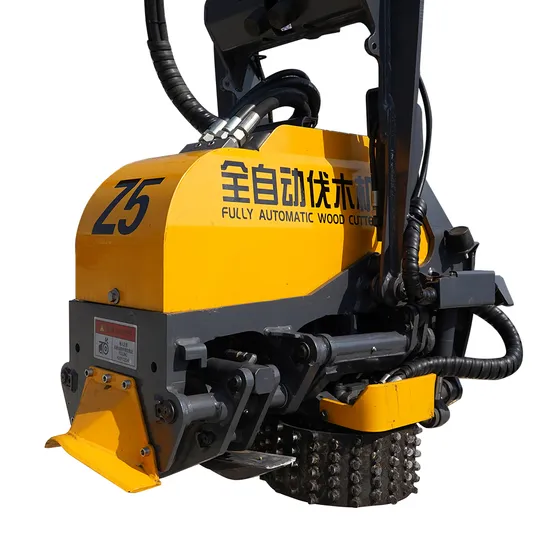

Fully Automatic Wood Cutter
Suitable for multi-path efficient cutting, zero clamping, minimum 1cm over the branch, intelligent control system, automatic tail branch sorting, easy maintenance structure, detachable fuel tank, efficient and economic cutting, multi-functional control, compact geometry fast and powerful feeding

Model	Z5
Size	1260*1160*1160mm
Weight	700kg
Energy consumption	40kw-60kw
Working power	24Mpa
Saw devices	Hydraulic chain saw
Maximum cutting diameter	400mm
Sawing plate length	18'
Chain pitch	0.404''
Saw tank capacity	5L
Chain saw speed	40m/s
Feeding system	Three feeding wheels
Three feeding wheels	410mm
Feeding force	17KN
Feeding speed	4m/s
Number of knives	4+1
Maximum opening of the front knife	490mm
Maximum opening of the back knife	450mm

* Special design of this type of small excavator
1.It adopts the well-known domestic brand Changchai 192F engine, which has strong power and stable work, or adopts the popular
Kaopu engine to meet European emission requirements. Cooperate with American BRIGGS & Stratton engine to meet American emission
requirements.
2. The structural parts of the machine are processed by the Japanese supporting manufacturer. The whole
vehicle has been sandblasted, pickled, phosphated and sprayed to increase the adhesion of the paint molecules, making it more
durable, non-bleaching, and smoother.
3. The length of the dozer shovel can be adjusted according to the working range:
84cm-105cm, and the maximum working height of the dozer shovel can be adjusted from -15cm to 15cm.
4. The track can stretch from a minimum of 830 mm to a maximum of 1000 mm, and can pass through narrower places.
Multifunction Woodworking Table Saw Wood Cutter Two Sides For Excavator
