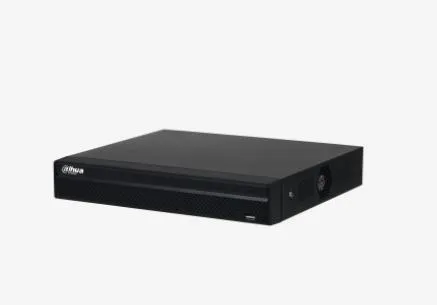

Dahua 4/8/16 Channel Big Storage 1u 1080P Network NVR (NVR4104HS-P-4KS2/L)

Product Description

Product Description NVR4104HS-P-4KS2/L NVR4108HS-P-4KS2/L 4 Channel Compact 1U 1HDD 4PoE Network Video Recorder
> New 4.0 user interface, Security baseline 2.1
> H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
> Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
> Supports mainstream cameras of ONVIF and RTSP protocols
> P2P remote surveillance, video play on mobile device
> VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
> AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
> Supports remote configuration and management of IPC, such as set ting parameters, getting information, and upgrading IPC of the same model in batches
Product Parameters

System

Main Processor

Industrial-grade embedded processor

OS

Embedded Linux

Operation Interface

Web/operating in local GUI

Perimeter Protection by Camera

Performance

4 channels

AI Search

Search for pictures by channel, time and event type

Face Detection by Camera

Performance

4 channels

Face Attributes

6 attributes: Gender, age, glasses, expression, mouth mask, and beard

AI Search

Search for pictures by channel, time and face attributes

SMD Plus by Camera

Performance

4 channels

AI Search

Search by target classification (human, vehicle)

Video

Access Channel

4

Network Bandwidth

Access: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps

Resolution

8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1

Decoding Capability

8 × 1080p@30 fps

Video Output

1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI

Multi-screen Display

1 , 4 views

Third-party Camera Access

ONVIF; RTSP

Compression

Video

Smart H.265/H.265/Smart H.264/H.264/MJPEG

Audio

PCM/G711A/G711U/G726/AAC

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

Mobile Phone Access

Android; iOS

Interoperability

ONVIF(profile T/S/G); CGI; SDK

Browser

Chrome; IE9 or later; firefox

Record Playback

Multi-channel Playback

Up to 4 channels for playback

Record Mode

Manual record; alarm recording; SMD recording; smart recording

Storage

Local HDD; network

Backup

USB storage device

Playback Function

1. Play/pause/stop/slow/quick/backward/by frame 2. Full screen, backup (video clip/file), partial zoom in, and audio on/off

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm

Anomaly Alarm

Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception

Intelligent Alarm

Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms

Alarm Linkage

Recording, snapshot, audio, buzzer, log, preset, and email

External Port

Audio Input

1 × RCA input

Audio Output

1 × RCA output

HDD

1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature

USB

2 (1 × front USB2.0; 1 × back USB2.0)

HDMI

1 (supports up to 4K resolution output)

VGA

1

Network

1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

POE

4

General Parameter

Power Supply

48 V/53 VDC, 1.25 A/1.13 A

Power Consumption

< 10 W (HDD not included, idling) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W

Net Weight

0.86 kg (1.90 lb)

Gross Weight

1.86 kg (4.10 lb)

Product Dimensions

260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98") (W × L × H)

Package Dimensions

117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H)

Operating Conditions

-10 °C to +55 °C (+10 °F to +131 °F)

Storage Conditions

0 °C to +40 °C (32 °F to 104 °F)

Operating Humidity

10℅~93℅

Storage Humidity

30%~85%

Operating Altitude

3000 m (9842.52 ft)

Installation

Desktop mounted

Certifications

CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B

Packaging & Shipping

Shipping	DHL, Fedex, UPS, Sea shipping
Warranty	2 years
OEM services	Yes!!! you can OEM with your own logo
Technical support	Yes!!! we have technical team

Company Profile About company
We are a professional wholesales of CCTV Surveillance products, we not only provide products, services, technical support, but also provide solutions.
Our main products are Network camera, PTZ camera, Network video recorders, Explosion-Proff and Auti-Corrosion, Turbo HD camera, Digital video recorders, Access control, Video intercom, Alarm, Display and Control, Transmission, Thermal camera, Intelligent traffic, Storage, Accessories, etc...
Our goal is to: Find a long-term business partner, and establish a long-term and stable win-win cooperation relationship. Help you win the market! Welcome to contact us! contact Yulia for better services. FAQ 1)Why choose us?
Comptetive Price:Our company has built up friendly relations with Dahua,Hikvision, IMOU since 2015.and we work with factory directly.
Friendly and fast service:We have professional tech-support team to deal with problems before and after sales. Don't be afraid if you meet probelms.We are here!

2)When will you ship my order?
Products are popular,so inventory is always changing. Please contact us before you pay and we will confirm the date with you.

3)Can I installate the security cameras by myself?
Of course!There is always a user manual in the packaging box.You can contact us directly if you meet any problems.We are here!
4)How about warranty?
2-year warranty period(since the date you receive the order). some products are 3 years and some are 5 years, welcome to confirm with us.
5)How about the shipping cost?
Shipping cost is depend on weight, we have very cost-effective agent for you.
6)Your products sell to whom?
Retail and wholesale customers are both welcomed.

If interested in this camera,pls contact us today and know the most latest information!
