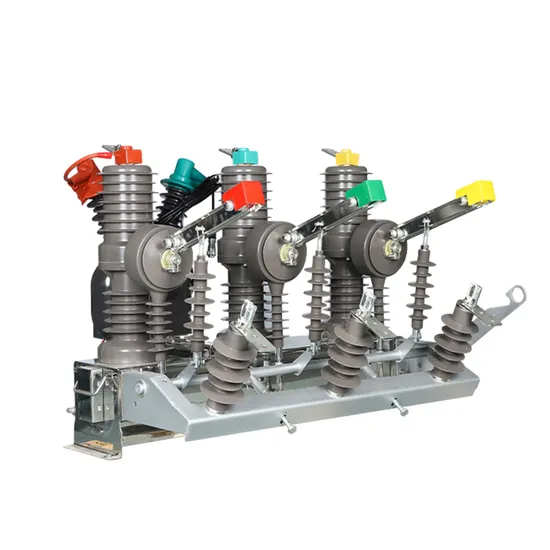

20kv-40.5kv 1250A Smart Outdoor High Voltage Intelligent Vacuum Switch Auto Recloser Circuit Breaker

Product Description

Smart Outdoor High Voltage Intelligent Vacuum Switch Auto Recloser Circuit BreakerProduct Parameters

Main Technical Parameters
Item		Unit	Data
Rated frequency		Hz	50
Rated voltage		kV	12
Rated current		A	630	1250
Rated short-time power frequency withstand voltage	Interphase, to earth(wet)	kV/min	34/1
	Interphase, to earth(dry)		42/1
	Fracture (dry)		48/1
	Secondary circuit to earth		2/1
Rated lightning impulse withstand voltage	Interphase, to earth	kV	75
	Fracture		85
Rated short-circuit breaking current		kA	20/25
Rated short-circuit making current(peak)			50/63
Rated short-time withstand current and duration		kA/s	(20/25)/4
Rated peak withstand current		kA	50/63
Rated short-circuit breaking current breaking times		Times	30 (E2 Level)
Gas Rated Gauge Pressure		MPa	0
Main circuit resistance		μΩ	≤120
Rated Operating Voltage and Rated Voltage for auxiliary(control) circuit		V	AC/DC220,DC48,DC24
Mechanical life		Times	10000 (M2 level)

Product DescriptionWhen the 12kV overhead distribution line T is connected to the branch line or the internal user fails, the timing of the line switch protectionaction and the substin outet switch protection time imit cannot be properlv adiusted, which will cause the substation outet switch to trip.the nature of the fault is permanent and the substation coincidence will not be successful, then a local failure in a medium voitage uselcommunity wilpower down the entire 2kv distribution ine. f an outdoor iunction breaker is instaled at the T iuncion or the customer enc(responsibility demarcation point),it is ensured that the failure (overcurrent, short circuit, single phase grounding, etc.)
In the user boundary is determined and the fault is automalically isolated, Users in non-fauily areas use power normally. ZW32-12Foutdoor high-voltage inteligent demarcation vacum circuit breaker (watchdog) can be used on 12kV feeder ovethead line to avoid theconnection of faut-free lines, thus power failure, narrowing the scope of power failure, shortening the power outage time of users, andprotecling the main network, safe operaion. t also has fault detecion function., protection control function and communicaion functionwhich can realize automatic cut-off single-phase ground fault and automatic isolation phase-to-phase shortfault. The nstalaion pointuses the responsiblity demarcalion point for the user incominga line of the 12kv distribution line, and can also be applied to the branchline connection that meets the requirements.
Main Product
On-site Installation
Company ProfileGlobal Power Equipment (Xuzhou) Co., Ltd. is anintelligent technology enterprise engaged in R&D manufacturing and sales of power transformers,
high and lowvoltage switch cabinets, box-type substations and supporting products.
The factory covers an area of nearly 100,000 square meters,with a registered capital of 60.6 million yuan. lt has more than 300 employees,20 party branch members,nearly 20engineers, and nearly 50 technical personnel with intermediatetechnical titles.The company relies on domestic advanced technology and production. And testing equipment, inaccordance with the operating standards of the lS09000quality certification system, using computer-aided design, toprovide customers with environmentally friendly, energy-saving,low-carbon and high-quality products that meet thecharacteristics of each region to meet the fundamental requirements of the market and different customers.
WorkshopGlobal Power Equipment always insists on "striving for progresswith science and technology,for survival with quality, forefficiency with management, for market with integrity, and fordevelopment with innovation". Insist on the meticulousness andexcellence of every detail and link, strive to realize thestandardization and systematic management of product quality, and accelerate the innovative application, digestion andabsorption of new technologies. Through extensive technicalexchanges and cooperation, research and development of high-reliability, maintenance-free, intelligent, energy-saving andenvironmentally friendly power transmission and transformationequipment products. To achieve the goal of building a R&D andmanufacturing base for advanced equipment as the medium andlong-term development of the enterprise. Committed tobecoming the world's leading supplier of power equipment,making the "Zhonghao" brand more outstanding due to quality.and comprehensively revitalizing China's national industry.
