High Strength Stud Anchor Chain for Ocean Industry

Product Description

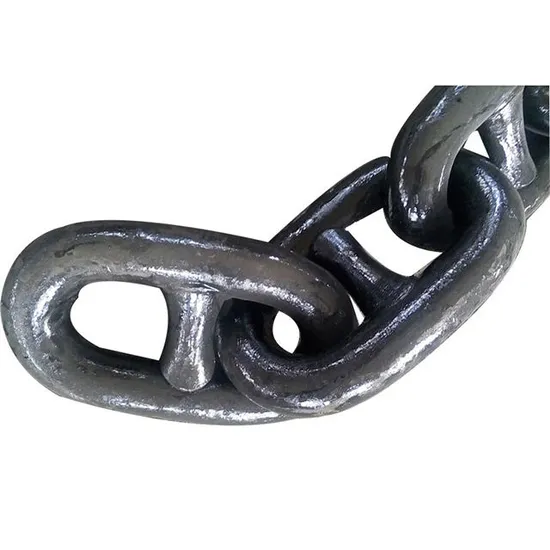

High Strength Stud Anchor Chain for Ocean Industry
Stud Link Anchor Chain is widely used on Floating Equipment, Ships, Oil Rigs and Mooring Buoys.
We supply wide range of sizes and grades:
Grade U2 / U3 from 12.5mm to 162mm; Grade ORQ / R3 /R3S / R4 from 58mm to 162mm
Can be supplied with CCS BV LR NK KR ABS DNV-GL RMRS IRS certificate etc.
Our chain can meet requirement of ISO1704, GB/T 549, JIS F3303, Gost 228, IACS, OCIMF, API and other international regulations.
Technical Specification(Stud link anchor chain):

Diameter		Chain Link Size		U1 Open Link Chain		U2 Open Link Chain		U3 Open Link Chain		Approx.Weight
		Outside Length	Outside Width	Proof Load	Breaking Load	Proof Load	Breaking Load	Proof Load	Breaking Load	27.5M
INCH	MM	MM	MM	KN	KN	KN	KN	KN	KN	KG
1/2	12.5	75	45	46	66	66	92	92	132	98
9/16	14	84	50.4	58	82	82	116	116	165	119
5/8	16	96	57.6	76	107	107	150	150	216	156
11/16	17.5	105	63	89	127	127	179	179	256	186
3/4	19	114	68.4	105	150	150	211	211	301	230
13/16	20.5	123	73.8	123	175	175	244	244	349	260
7/8	22	132	79.2	140	500	500	280	280	401	300
15/16	24	144	86.4	167	237	237	332	332	476	370
1 1/16	26	156	93.6	194	278	278	389	389	556	431
1 1/8	28	168	100.8	225	321	321	449	449	642	496
1 3/16	30	180	108	257	368	368	514	514	735	564
1 1/4	32	192	115.2	291	417	417	583	583	833	635
1 5/16	34	204	122.4	328	468	468	655	655	937	712
1 7/16	36	216	129.6	366	523	523	732	732	1050	800
1 1/2	38	228	136.8	406	581	581	812	812	1160	887
1 9/16	40	240	144	448	640	640	896	896	1280	1032
1 5/8	42	252	151.2	492	703	703	981	981	1400	1084
1 3/4	44	264	158.4	538	769	769	1080	1080	1540	1197
1 13/16	46	276	165.6	585	837	837	1170	1170	1680	1310
1 7/8	48	288	172.8	635	908	908	1270	1270	1810	1438
2	50	300	180	686	981	981	1370	1370	1960	1546
2 1/16	52	312	187.2	739	1060	1060	1480	1480	2110	1661
2 1/8	54	324	194.4	794	1140	1140	1590	1590	2270	1791
2 3/16	56	336	201.6	851	1220	1220	1710	1710	2430	1926
2 5/16	58	348	208.8	909	1290	1290	1810	1810	2600	2086
2 3/8	60	360	216	969	1380	1380	1940	1940	2770	2249
2 7/16	62	372	223.2	1030	1470	1470	2060	2060	2940	2361
2 1/2	64	384	230.4	1100	1560	1560	2190	2190	3130	2516
2 9/16	66	396	237.6	1160	1660	1660	2310	2310	3300	2676
2 11/16	68	408	244.8	1230	1750	1750	2450	2450	3500	2885
2 3/4	70	420	252	1290	1840	1840	25800	25800	3690	3010

1.Refuse to cut corners, from CM490/CM690 material
Fine workmanship and careful welding.
2.The surface is treated in rust-resistant.method.
3.High toughness and large capacity of absorbing shock load.
4.High product strength, light weight, exquisite design, strong versatilityOur own factory with more than 20 years of production experience.
can apply for the certification of CCS, LR, DNV and other well-known classification societiesProduction Advantages:
1. We have more than 20 years of production experience.
2. We have some inventory that can be shipped within 1-5 Work days to meet the emergency demand.
3. Our factory has passed ISO9001, OSHMS18001, ISO14001, API certification and IACS type certification.
4. Advantageous production facilities:
Advanced program-controlled chain production line; Automatic heat processing machine; Automatic shot blasting machine.
5. Quality control: quality control of the manufacturing process from raw materials to final products.
The whole machine drawing is approved by all IACS members; Conduct material fatigue test as required; Request stress analysis; Emphasize practical testing in the task.
Packaging & Delivery:
Packing details:
Bulk packing
Packed in wooden cases
Packed in Iron drum, then in pallets
According to your requirements
Delivery Detail: 30% advanced by T/T, the balance should be paid after see the copy of the B/L; L/C at sig-ht; Western Union.
FAQ
Q1. How to order?
A: You can send the order to us by email. Please let us know if you have any specific requirements, such as product size, packing, quantity, etc.
Q2. Could you give me a sample before placing an order?
A: Sure! Usually you need to pay for samples and express delivery.We can deduct it when you place an order. Q3. What's your usual packing?
A: We usually use cartons, wooden cases and pallets. If you have any special requirements, we would be glad to pack the goods according to your requirements. Q4: Can our logo be printed on the product?
A: Yes, you can use your own brand.
What about the lead time?
A: About 15-20 working days according to your quantity and quality.
What are the terms of payment?
A: We accept L/C and T/T.
