Limestone/Stone/Rocks/Ore/Impact/Jaw/Hammer/Cone/Mobille Crusher for Mining Rock Crushing Machine

Product Description

Product Description
The impact crusher abosorbing advantages of similar products abroad, optimized design, crush material whose compression strength not more than 320Mpa, such as limestone, granite and basalt and etc. Enjoy the advantage of big crushing ratio, high crushing efficiency, even cubic discharging , convenient maintenance.
Limestone Crusher Mechanical Fine Impact Crusher For Mining Rock Crushing Equipment
Our Advantages

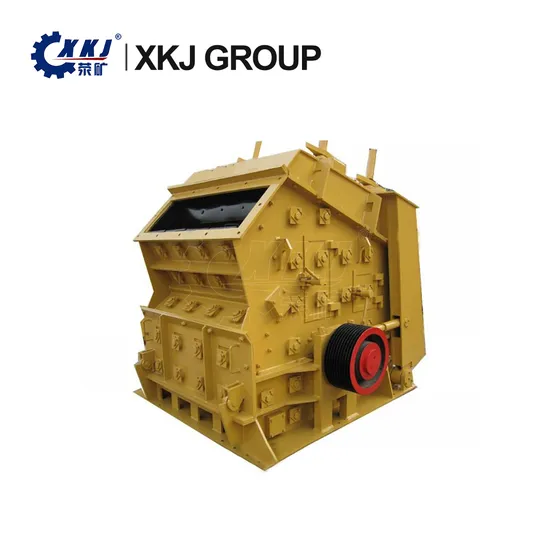

Description of Impact Crusher:
Impact crusher is used in crushing all kinds of materials whose fineness is below 500mm, and the pressure resistance around 350mpa. It has the features of big reduction ratio, efficient crushing, easy maintenance and cubic shape with final product. With perfect features and good performance, impact crusher is widely used in high road construction, water conservancy and construction process of gravel and so on.
Working Principle of Impact Crusher:
Impact crusher is the machine which breaks materials using the impact energy. The rotor rotates with a high speed driven by power motor when the machine is working. When the materials get into hammer effect area, they are impacted to break on the rotor and then thrown to the impacting position to take another crushing. After that materials will spring back to hammer impacting area from impact wrist plate for crushing again. When the materials are crushed to the required size, they will be discharged from the outlet. The material's discharging size and shape can be changed through adjusting the gap between impact frame and rotator on.
Product Parameters

Model	Specification	Feeding hole size (mm)	Max feeding size (t/h)	Discharging size(mm)	Capacity (t/h)	Motor (kW)	Weight (t)
PF-1007	φ1000x700	460x750	200	<30	30-50	37	10.5
PF-1010	φ1000x1050	460x1104	250	<50	50-80	55	13.4
PF-1108	φ1100x850	400x1080	300	<50	60-100	75	15.5
PF-1210	φ1250x1000	400x1080	350	<50	80-135	110	16.8
PF-1214	φ1200x140	480x1500	350	<20	100-180	132	20.5
PF-1310	φ1300x1050	490x1170	400	<20	120-220	160	24.3
PF-1315	φ1320x1500	860x1520	500	<50	130-250	210	26.8
PF-1520	φ1500x2000	860x2000	600	<50	310-580	315	50.6
PF-1820	φ1800x2000	1260x2040	700	<50	600-800	630	83.2

Detailed Photos
Packaging & Shipping

Certifications
Company Profile
Henan Xingkuang Machinery Co., Ltd.is a large sized enterprise integrated with the scientific research,production and sales of heavy mining machinery. With more than 60 years development, XKJ GROUP now the capacity increase can produce 3000TPD ore beneficiation equipment, building material, metallurgy. Our products now have exported to all over the world, such as Indonesia, Kenney, Tanzania, Peru, Philippine, India. Our company provide to clients project design, mineral test, workflow design, small and middle test and equipment installment test run one station service.
After Sales Service
-Pre-sale services
Based on the clients' request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients. We will arrange cars, hotels and translators for the visiting customers.
-Sale services
Our experienced technicians is available on the phone also the internet, clients can get instance guidance by telephone, email, online service anytime, anywhere. As clients' request, we will send technician to the mine site to guide the installation, trial run test, and training operators until the plant works normally.
-After-sale service.
Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.
