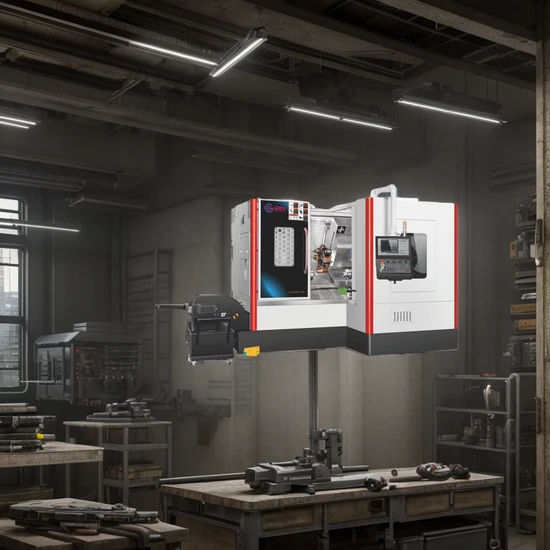

High Precision Dual Spindles CNC Turning Lathe Center Machine Model

Product Description

Introducing the High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center, a true masterpiece of modern engineering excellence. This innovative machine is meticulously crafted to redefine what precision and productivity mean in your machining operations, ensuring every task is executed with perfection and efficiency. CNC (Computer Numerical Control) turning lathes have completely revolutionized the modern manufacturing landscape, providing unmatched precision and extraordinary efficiency within the production process. These highly advanced machines possess the extraordinary ability to perform a wide range of operations including drilling, tapping, turning, and boring with exceptional accuracy. They are extensively used across a variety of industries such as automotive, aerospace, medical, and electronics. CNC turning lathes are vital in the creation of intricate and high-precision components, fulfilling the rigorous demands of today's cutting-edge technological applications.
In this comprehensive article, we take an in-depth look at the intricate components that constitute a CNC turning lathe, unraveling its complex working principles. We also explore its versatile applications across a broad spectrum of pioneering industries, highlighting its pivotal role in advancing modern manufacturing.
Product Parameters

Model	LM-10SY-III
Double spindle/Double power turrets
Number of axis	10 Axis(X+Z+Y+X1+Y1+Z1+C1+C2+TD+D2)
Max turning diameter on the bed	Ф450mm
Max processing length	400mm
Max processing diameter	Ф300mm
Main spindle nose	ANSI A2-6
Main spindle hole	Ф82mm
Bar hole diameter	Ф70mm
Main spindle speed	1-4500rpm
Main spindle Chuck size	8"(Hydraulic chuck)
Sub-spindle nose	ANSI A2-4/A2-5
Sub-spindle hole	Ф46mm
Bar hole diameter	Ф36mm
Sub-spindle speed	1-5000rpm
Sub-spindle chuck size	6"(Hydraulic chuck)
Main Spindle power	11KW
Sub-spindle power	11KW
X1/X2 axis power	3.1KW
Y1/Y2 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power(milling axis)	3.1KW
D2 Axis	2.4KW
Hydraulic pump motor power	2.2KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Turret Outer diameter shank	25mm
Turret Inside diameter shank(Boring tool)	Ф32mm
Slider Outer diameter shank	20mm
Slider Inside diameter shank	Ф20mm
TD axis live tools milling speed	0-4000rpm
End milling tool specification	4*ER20
X1/X2/Y1/Y2/Z1/Z2 axis rapid speed	25m/min
X1/X2 axis travel	560mm/590mm
Y1/Y2 axis travel	150mm/150mm
Z1/Z2 axis travel	540mm/330mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.003mm
X/Y/Z/Z1 axis position accuracy	0.002mm
Oil tank capacity	60L
Cooling tank capacity	95L
Machine weight	5800KG
Machine size	2600*2200*2250mm
Controller	Syntec 200TB

Company Profile
For countless years, GKD (Mingju) has passionately dedicated itself to harmonizing resources, pioneering cutting-edge technologies, and relentlessly striving to deliver unparalleled quality to our esteemed global clientele.
GKD, an illustrious conglomerate, excels in the research, development, and manufacturing of premier CNC machining centers. Strategically nestled near Hong Kong, China, a locale celebrated as the "World Factory", GKD proudly stands at the forefront of innovation. Complementing this is our esteemed European headquarters in Italy (Taiwan), establishing a robust global sales and service network. Our expansive enterprise boasts five prolific production bases situated in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu. Our flagship suite includes state-of-the-art vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, five-axis machining centers, alongside a plethora of high-end CNC machine tools and production lines. We have ascended as a paramount manufacturer in China, showcasing a comprehensive industrial chain of CNC metal cutting machine tools. Our exquisite products find applications across diverse sectors such as aerospace, mold manufacturing, automotive, energy, marine, engineering machinery, and 3C electronic products, cementing our reputation as a leader in the manufacturing industry.
GKD Group is unwavering in its mission to deliver premium products coupled with all-encompassing solutions. We ardently embrace the tenets of high-speed, precision, and efficiency in intelligent equipment, offering exemplary solutions that resonate with the discerning needs of our clientele, ensuring unparalleled cost-effectiveness. Boasting formidable manufacturing prowess and robust after-sales service, GKD has extended an extensive portfolio of products and services to numerous countries and regions, earning a prestigious global footprint.
GKD Group is wholeheartedly devoted to serving you with sincerity and excellence!
Our Advantages
1. Revel in an unparalleled level of professional service within the CNC machine export industry, backed by our vast and profound expertise.2. Empowering your business with cutting-edge technologies sourced from industry leaders in Italy and Taiwan, we offer extraordinary manufacturing capabilities that distinctly differentiate us.3. Select from a wide array of adaptable payment solutions, including T/T, Western Union, L/C, and Paypal, each conveniently designed to fit your unique financial preferences.4. Leverage our unwavering commitment to providing premium, safe materials at highly competitive prices, ensuring you receive unmatched value and quality.5. We cater to small order requests with ease, granting you seamless access to our exceptional products and services without any hassle.6. Benefit from our swift response times, ensuring that your inquiries and requirements are met with prompt and efficient attention.7. Our transportation strategies prioritize both safety and speed, ensuring that your products arrive at their destination both efficiently and securely.8. We provide tailored OEM design services, fully customizable to seamlessly fulfill the distinct and specific expectations of our esteemed clientele.
Certifications
Packaging & Shipping
After Sales Service
1) Enjoy an exclusive 12-month quality warranty, beginning the moment your product reaches its destination port. During this period, we pledge to supply necessary fittings at no extra charge, unless the damage is physical. Kindly send back any damaged parts to us via courier at your cost before we send out replacements. Beyond the warranty, repairs and replacements are your responsibility and will attract a nominal fee. 2) While onsite maintenance by our engineers may be challenging, our comprehensive online support systems ensure you are never left without assistance. From machine installation to operation, adjustment, or maintenance, our expert team is ready to assist you through email, MSN/Skype, video calls, telephone, and fax, ensuring a swift resolution to any issue you face.3) For problems beyond our online support during installation, use, or adjustment, take advantage of our premium Door-to-Door service. Our skilled engineers can travel to your site for assembly, maintenance, or adjustments. To ensure a seamless process, please aid in visa arrangements, prepay travel costs, and provide accommodation. A translator should be available throughout their visit. Alternatively, your engineer can visit our factory for in-depth, no-cost technical training.
FAQ
1. What is your minimum order quantity and warranty?MOQ is one set, and warranty is one year.2.What brand of the bearing do you use?NSK from Japan3.When is the delivery time?We will delivery it within 15-30 days after received your payments.4. How to handle the warranty period?During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement. If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.5.Can your company send the technical personnel to our company and direct our workers for free?When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD150.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
