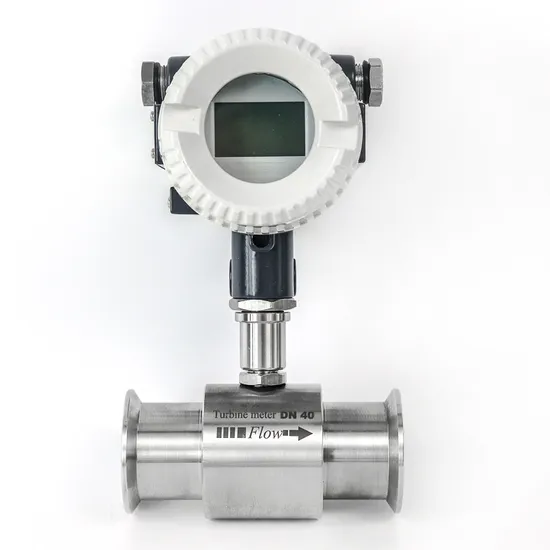

316L Stainless Steel 4-20mA Food Grade Tri Clamp on Flow Meter for Milk

Product Description

316L Stainless Steel 4-20mA Food Grade Tri-Clamp Type Flow Meter for Milk The Siko Instruments HG-LTFM Liquid Turbine Flow Meter Is A Type Of Impeller Flowmeter Used For The Precise Measurement Of Low-Viscosity Fluids Such As Tap And Demineralised Water, Light Fuel Oil, Liquefied Gases, Ethanol Gasoline, Pharmaceutical Fluids, Non-Corrosive Chemicale Solvents etc.
Turbine Flow Meter Measure Volumetric Flow And Flow Quantities, Where Flow Passing Through The Tube Is Measured By The Average Velocity Of The Streaming Fluid. The Sensor Of Turbine Reacts To The Average Velocity Of Fluid With Multi-Blades Rotor So As To Speculating The Instantaneous And The Accumulative Flow.
HG-LTFM Series Intelligent Liquid Turbine Flow Meter Is A Speed Sensor Based On The Principle Of Moment Balance. It Has The Characteristics Of Simple Structure, Lightweight, High Precision, Good Repeatability, Sensitive Reaction, Less Installation And Maintenance, Convenient Use And So On. It Is Widely Used Inpetroleum, Chemical Industry, Metallurgy, Water Supply, Paper Making And Other Industries. It Is An Ideal Measuring Instrument For Flow Measurement And Energy Saving.
HG-LTFM Series Intelligent Liquid Turbine Flow Sensor And A Display Instrument Supporting The Use Of, Suitable For Closed Pipe With Stainless Steel 1Cr18Ni9Ti, 2Cr13 And Ai2O3 Cemented Carbidecorundum, Not Corrode, And No Fiber, Measurement Of Particles And Other Impurities In Liquid. Quantitative Control Instrument If The Production And The Company, Can Be Used For Quantitative Control, Excess Alarm ...etc.Selection OF Explosion Proof Form The Product (Exd II Bt6), Can Be Used In The Explosion Hazardous Environment Use.

Place of Origin	HeFei City Anhui Province China
Warranty	1 Years
Customized Support	OEM, ODM, OBM, Software Reengineering
Brand Name	Siko Instruments
Model Number	HG-LTFM Liquid Turbine Flow Meter
Power Supply	24VDC / 220VAC / 3.0V Battery
Medium	Tap Water / Alcohol / Liquor / Medicine / Gasoline / Diesel
Range Ratio	1:10 / 1:15 / 1:20
Output Signal	4-20mA, Pulse Output, 0-10V, Hart, Modbus
Accuracy Class	±1% of Reading Std ±0.5% Optional
Medium Temperature	-20 - +120 Deg.C
Process Pressure	1.6Mpa / 2.5Mpa /4.0Mpa / 6.3Mpa / 10Mpa / 16Mpa / 25Mpa / 42Mpa
Process Temperature	-4 - 250°F (-20 - +120°C)
Protection	IP65 / IP68
Display	Digital LCD Display
Process Connection	NPT Threads 1/8"-3" (4-80mm) ANSI/DIN Flange For 1/2"-8" (15-200mm)
Ex Protection	Exia II CT4 or Exd II BT6
Flanged Connection	DIN PN10 / PN16 / PN25 / PN40 ANSI 150# / ANSI 300# / ANSI 600# JIS 10K / JIS 20K / JIS 40K
Materials of Construction	Rotor: 2Cr13 Stainless Steel Shaft: Tungsten Carbide Bearing: Tungsten Carbide Retaining Rings: SS# 316 Body: SS# 304 Std, SS# 316 Optional

Features

01.	Factory Calibrated & Low Pressure Drop.
02.	Turndown Ratio Up To 10:1
03.	High Accuracy With Economic Price.
04.	Simple Installation And Durable Construction.
05.	Wide Variety Of Process Connections.
06.	Wide Temperature Range -4 - 230 °F (-20 - 110 °C).
07.	Provide Convenient Signal Output & RS-485 & HART Communicaitons Available.
08.	Battery-Powered Display Available & High Resolution And Fast Response Time 5 To 50 ms.
09.	Pressures Up To 3600 Psig (250 Bars) Using Optional High-Pressure Flanges.
10.	Easily Cleaned Designed To Flush Particulates Through The Meter With The Fluid Media.
11.	NPT Threaded Process Connection Standard, Optional BSP Threads & Flange Connections Available.

Product Parameters
Measuring Range & Pressure

Outline Dimension
Selection Table
