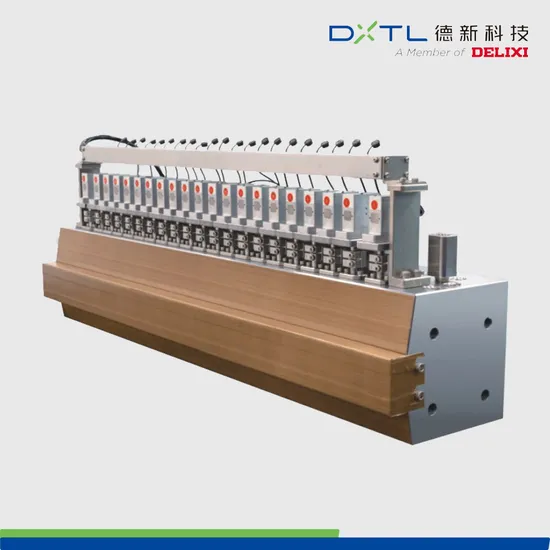

Automatic Closed-Loop Control Coating Slot Die Coating Mould Head for Lithium Battery Coating

Product Description

Product Description

Automatic closed-loop adjustment method
It can be understood as software-controlled micro-servo electric cylinders controlling the slurry extrusion thickness in each area through T-shaped blocks; the adjustment accuracy is 0.002mm, which not only ensures better consistency, but also realizes intelligent adjustment, improves efficiency, and saves labor
Our Core Advantage
1,The Manual Mocrometer head adjustment is insteaded of fully automatic coating die mode controlled by a micro
cylinder. The whole process data is tracked to understand the production status in real time, and the material waste is
reduced by 8%. Intelligent production levels and competitiveness have been enhanced, coating consistency has been
significantly improved, and COV/CPK values have increased by 50%. .
2,According to the data of wet film and dry film, a dry-wet fitting model is established, and the dry film is predicted
by inference from the latest wet film data. There is no need to wait for the coating to pass through the oven! The
die head closed-loop adjustment is realized in advance, which reduces waste and the error is less than <0.2%
Structure
1,Coating Intelligent Closed Loop Control System
With Al model as technical base,vertical scene is made inlithium battery coating to realize intelligent predictive
controland accurate coating
2,Intelligent Slot-Die Coating Head
With Allarge model as technical base,vertical scene is made inlithium battery coating to realize intelligent predictive
controland accurate coating
3,Micro Servo Electric Clylinder
High-precision control, equipped with hollow-cup brushlessmotor and planetaryroller screwinternally, FOC(Field
OrientedControl)algorithm,featuring closed-loop control of currentspeed,and position.
Basic Parameter

Adjustment method	Automatic Closed Loop Adjustment, Different Screw Adjustment , Micrometer Head Adjustment ,Push-Pull Adjustment
Length specification	≤2000mm
Flatness:	≤3um
Straightness:	≤3um
Roughness of runner	≤Ra0.025 um
Coating speed	≤100m/min

Features Closed system reduces contact between coating liquid and pollutants and solvent volatilization Using fluid simulation software to achieve uniform coating design Using pre-measurement method can achieve high-precision and high-speed coating Can adopt large window and multi-layer structure design, can achieve a variety of coating liquidsto complete a variety of widths and surface densities of coating, shorten product changeover time Easy-to-use design, simple operation, safe and convenient adjustment and maintenance
Workshop Corner
The company is equipped with high-precision testing equipment Zeiss ZIESSPRISMO9157 three-dimensional coordinate measuring machine Keyence ultra-depth of field three-dimensional microscope VHX-970F MarSurfPS 10 roughness tester
Company Profile
Dongguan Zhihong Precision Mould Co., Ltd (hereinafter referred to as "Zhihong Precision") is a wholly-owned subsidiary of DELIXI New
Energy Technology Corporation (stock code: 603032). Since its establishment in 1999, ZhiHong Precision has been mainly engaged in the research and development and production of highprecision hardware molds, and began to plough into high-precision lithium-ion battery molds in 2011, which has been more than 12 years ,so far. The main products are high-precision lithium battery automatic cutting molds, high-precision lithium battery automatic cutting knife, including 3C consumer battery molds, power battery molds, energy storage battery molds. After years of deep cultivation in the field of precision mold manufacturing, ZhiHong Precision has become a leading lithium battery pole cutting mold enterprise in China, and is in the leading position in the field of pole cutting mould.
Guangdong Zhifeng Technology Co., Ltd. is a wholly-owned subsidiary of ZhiHong Precision which was established in early 2022. It is a subsidiary of Dongguan Zhihong Precision Mould Co., Ltd. and is located in Chang'an, Dongguan. The company has been committed to the research and development, production, sales and service of high-precision moulds. At present, there are more than 80 employees and more than 16 R&D teams, mainly senior engineers and experienced technicians who have been engaged in this industry for many years. They have independent intellectual property rights and a number of patent certificates. The company has successfully developed a series of high-precision extrusion coating die heads, with technical indicators and quality superior to similar domestic products, and equivalent to similar foreign products. It has successfully served the lithium battery industry OCR glass flat plate coating and other coatings.
