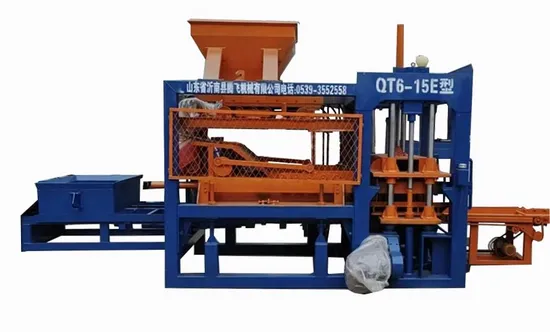

Qt6-15 Full Automatic Hydraulic Cement Concrete Curbstone Solid Stock Hollow Paving Paver Brick Block Making Machine

Product Description

A Product Description
Qt6-15 Full Automatic Concrete Cement Brick Block Making Machine Price
Qt6-15 is an automatic block making machine, it can make different hollow and solid bricks by changing mold, it also can make
paver blocks by adding pigment feeder. The production line includes QT6-15 host machine with controller and hydraulic station,
stack machine, JS500 mixer and 8 meters belt conveyor, PLD1200 batching machine and pallet feeder machine

1. This equipment is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient, easy-operated and easy-maintained. Block molding mainly by hydraulic, machinery as sideline, vibrate and press to finish molding blocks.
2. The design and manufacture of this machine accordance with the requirement and standard of
3. A high degree of automation, intelligent electronic control, automatic process is controlled by advanced PLC(Programmable Controller), input and store of process data and touch screen for blocks, it have ideal of flexible Human Conversation Interface.
4. Good reliability, Hydraulic system preference for to improved technology and perfected workmanship of design. Use independent integrated type hydraulic station. Avoid influence of dust and main machine vibration for hydraulic system.
5. Good adaptability of raw material, advanced step vibration molding technology. Adjusting measures to differing conditions. Use of all kinds of waste ash and slag, reasonably reduce the dosage of cement, make many kinds of high quality bearing or non-bearing blocks.

Size	pcs/mold	pcs/hour	pcs/8hour
400*200*200mm	6	1440	11520
400*150*200mm	8	1900	15360
400*100*200mm	12	2880	23000

Product Parameters
QT6-15 block making machine
1. Dimension: 4400*2300*2800mm
2. Weight: 5.8T
3. Pallet size: 900*700*22mm
4. Shaping method: vibration and hydraulic
5. Shaping cycle: 15s
6. Power: 31.25KW

Stack machine
1. Dimension: 1.5*1.5*1.8m
2. Weight: 1.2t
3. Power: 2.25kw

JS500 mixer
1. Dimension: 2.3*1.8*2.6m
2. Weight: 3t
3. Lift motor:5.5KW
4. Mix motor: 18.5KW
5. Water pump: 1.1KW
PLD1200 batching machine
1. Dimension: 9.6*1.7*2.3m
2. Weight: 2tons
3. Power: 12KW
4. Capacity of scale hopper: 1.2m3
Block sample
Machine can make different bricks by changing mold, mold can be customized.

Feedback from customer

Company Profile

CUSTOMER CASE
• Rakes in several rows make sure raw concrete materials fed well-distributed.
• Hydraulic components we use Taiwan Yuken famous brands.
• The demoulding synchronizer avoids the damage to cement blocks.
• The vibration system for concrete kerbs contains two part ,one is up-moild vibbration box ,
it is electricity motor to supply the power for up-mould vibration box. And the down mould ,
there have one big vibration. when the scatter material work finish ,
the hydraulic power with the two vibration force will assure the good density of Hollow Cement Block Machine,
solid pavers blocks and concrete kerbs..etc
Our service
Installation, commissioning and training:
Tengfei company will provide detail manual for install and operate guidance. If needed, engineers can be dispatched to your site for machine installation, commissioning, training. Installation & training fee: 100$ / Day. Buyer also responsible for round-tickets, visa cost, accommodation.
Warranty & Support All machines will be covered with 12 months warranty from our factory. Our factory will provide you with operation support for one to three months, and also train your people/ operators/ plant manager at our site before arrives your place. One year common spare parts will be provided free of cost. We maintain a good inventory of critical spares, you can get support of spares and service from China factory at any time. Project execution like workshop preparation, early stage layout and site visit are available. Import & Export Guidance, the machine will be delivered to your country with no worries. Machine inspection at China side.
