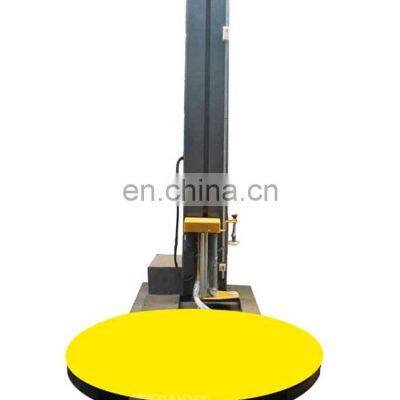

Best price stretch pallet wrapper wrapping machine for sale

Product Description

Product Description
Best price stretch pallet wrapper wrapping machine for saleProduct Description1.Machine introductionStretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally , wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances paper making foodstuff & drink etc. 2.Main technical parameterModel TP1650F-LWrapping size(L*W)(500-1200)mm*(500-1200)mmPacking heightL type:(500-2000)mmH type:(500-2400)mmY type:(500-higher than 2400)mmPacking efficiency20-40 loads/hourTurntable speed0-12rpmTurntable diameterDiameter:1650mm height:85mmTurntable loading(max)2000kgUp-down frameDouble-chain,Up-down speed variableFilm carriagePre-stretchControl systemPLCMachine weight(max)700kgMachine size2650mm*1650mm*2400mmElectricsSingle-phase 220V/50HzPowerTurntable:0.75kw,film carriage:0.3kw,up-down:0.4kw 3.Material usage:Machine is using a standard type of stretch film packaging material for creating a hard to tear,resistance,waterproof cover over the loads. The film is recyclable. Specification: width:500mm, thickness:20-25microns, length:1500meters, weight:max:16kgstretchable,one side sticky,transparent or colored. 4.Function of the machine:1).Control System PLC control Photo-eye auto-height sensing pallet height Separate top ,bottom & up-down Wrap Counter optionsOverwrap time is up to create an overwrap Reinforce wrap times is set to better secure 2 loads placed on top of each otherFilm Tension Control adjustment on the panel Separate start, pause and emergency stop buttonsPower indicatorManual carriage up/down Variable Turntable Speed Carriage up/down speed control Manual/automatic exchangeable2).Turntable 1650mm Diameter Structural steel plate85mm Height floor to top of turntable3).Turntable drive 0-12rpm variable turntable speed by frequency changerPosition turntable alignment Soft start 4).Film carriagePowered pre-stretch system up to 250% to min film consumption Film delivery variable speed by separate DC Drive MotorElectronic film tension control adjustment on panelFilm dancer-bar with variable speed output 5).Film carriage DriveHeavy duty double-chain carriage lift, calm and safetyFilm carriage variable speed by frequency changer Machine show Load ramp Wrapped products PE film show Company information Our team Our exhibition FAQ
