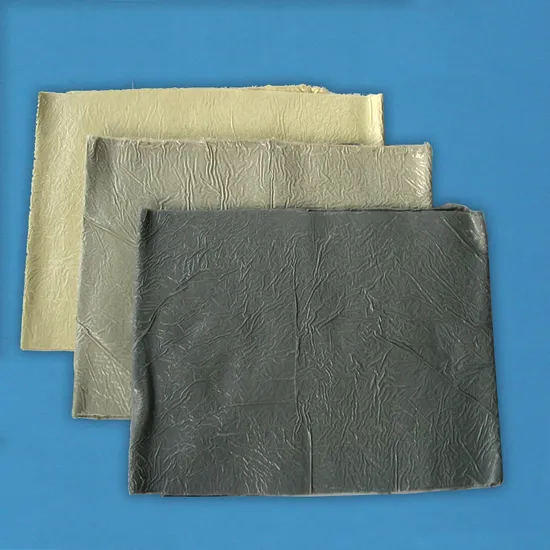

High Mechanical Strength Fv0 Grade SMC Sheet Molding Compound for Electrical Applications, Corrosion Resistant, Structural Components

Product Description

SMC Introduction:
Sheet moulding compound (SMC) or sheet moulding composite is a ready to mould glass-fibre reinforced polyester material primarily used in compression moulding. Alternatively the resin and related materials may be mixed on site when a producer wants greater control over the chemistry and filler.
Sheet moulding compound (SMC) is manufactured by dispersing long strands (usually >1") of chopped fiber (commonly glass fibers or carbon fibers on a bath of thermoset resin (commonly polyester resin, vinyl ester or epoxy resin)). The longer fibers in SMC result in better strength properties than standard bulk moulding compound (BMC) products. Also we provide long and continuous fiber or woven roving for extra reinforcement.
SMC Features:
High mechanical strength, low shrink, low density, dimensional stability, corrosion resistance, fire resistance,
Typical Application:
Electrical applications, corrosion resistant needs, structural components at low cost, automotive, sanitary, transit.

Type	Application
General Purpose	Non-electric products such as chair, water tank
Heat and Corrosion Resistant	Composite materials intended for use in sanitary, such as shower base, bath tub, walls
Electric	Satisfy different flame ratings such as UL94 HB, UL94 V0. High strength, UV stability. Suitable to make electric parts used indoor or outside
High Strength & A Grade Surface	High strength, good tenacity, A grade surface. Suitable to make door skin and auto parts such as bumper, panel, truck high roof

Typical Specification:

Physical Property	Units	Standard	Data	Remark
Specific Gravity	( g/cm³)	ASTM D-792	1.7-1.9	-
Glass fiber content	%	GB/T15568-95	18-40	-
Water absorption	%	ASTM D-570	0.2-0.3	24Hrs@23C
Average Shrinkage	%	ASTM D-955	0.05-0.2	-
Tensile Strength	Mpa	ASTM D-638	62	-
Tensile Modulus	Gpa	ASTM D-638	15	-
Flexural Strength	Mpa	ASTM D-790	158	-
Flexural Modulus	Gpa	ASTM D-790	14	-
Compressive Strength	Mpa	ASTM D-695	185	-
Impact Strength-Izod Notched	J/m	ASTM D-256	640	-
Impact Strength-Izod Unnotched	J/m	ASTM D-4812	854	-
Barcol Hardness	-	ASTM D-2583	30-60	-
Heat Distortion Temp	C	ASTM D-648	>204	264 psi
Flammability	cm/min	ASTM D-635	1.7	Average Burn Rate
Color	-	RAL	7035

SMC tray Product Description The SMC shower trays are a standard product installed during the construction of domestic and commercial premises. These trays are used everywhere, from basic building construction to highly advanced and modern bathroom designs. As a product that gets used on a daily basis, it is necessary for them to be highly durable and robust.
SMC Shower trays are also called hot cast shower trays, which is a popular name for them in America.
The material used to produce the shower trays is high-grade Sheet Mould Compound (SMC), which is amazingly strong while also remaining light in weight. Moreover, the material is non-hygroscopic, non-corrodible and ideally suited for aesthetically pleasing shower trays. These fantastic properties made SMC the best choice of material for the manufacture of the shower tray range.
We got 3 sets 2000Ton Presser and 10 different type mold for your choice.
Customized service availiable .

Colour: multi color

Made of durable SMC (sheet molding compound)

Self supporting, twice stronger than artificial Marble

2 year warranty

Size(mm):1300*1000*4

Stone effect surface

Delivery time: 25-30 days

Life:25years

FAQ
Q1.Can your company customize products?
A: Yes, We usually discuss with customers and help them find solutions.
Q2. How can I get a sample from you to check quality?
A: Usually a sample will be prepared within one week after specification agreed.
Q3. What about your delivery time? Can we receive our goods on time?
A: Usually around 2-3 weeks after order confirmed. Exact delivery time depends on order quantity and Off-season/ busy season.
Q4. What is the Guarantee to buy your products? How to resolve quality complaints?
A: Offer TDS of each lot of production for confirmation before delivery.Once you have any quality problem, you can provide samples /pictures /test data. With our quality tracking system, we will give you feedback in short time. If the quality problem confirmed,we will send you replacement or make refund as you like.
Q5. What are your terms of payment?
A: Usually we do EXW, FOB, CIF, and DDU.
