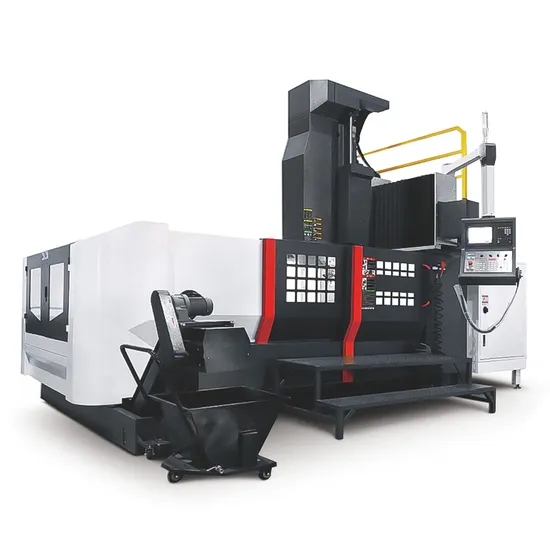

Five Axis High Precision Gantry Machining Center Double Column Heavy Duty Machine Tools Center Heavy Cutting Double Column CNC Gantry Milling Machine
Basic Info.
Model NO.
GMC2016
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
Spindle Taper
Bt50
Spindle Motor
11/15kw
System
Syntec/Mitsubishi/Fanuc/Siemens
Max Load
4000kg
Name
Heavy Gantry Machining Center
X/Y/Z Speed
20/20/16 M/Min
Tool Alignment
Auto Tool Checking
Working Table
2000*1300
Precision
0.02/1000mm
Repeat Precision
0.015
Power
5.5kw 380V 3 Phase
Spindle Speed
6000 Rpm
Max Working Speed
8m/ Min
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Mold
Type
5axis CNC Machining Center
Transport Package
Sea Worthy Plywood Case
Specification
5800*3700*3900
Trademark
WT
Origin
Dongguan City China Prc
HS Code
8459619000
Production Capacity
2000PCS/Year
Product Description
GMC2016 Five-axis High-Precision Gantry Machining Center Double-Column Heavy-Duty Turning/Milling/Grinding/Cutting/Drilling Hardware Machining CenterProduct Description
A mobile gantry machining center machine tool, suitable for machining equipment for various large workpieces in aerospace, shipbuilding, power generation, construction machinery, locomotives, machine tools, textile machinery, printing machinery, molds and other industries. The high-strength, high-rigidity design of the machine tool and the structure of the large-flow discharge channel have the characteristics of high precision, high efficiency, flexibility, and environmental protection.
Product Paramenters
| Item | Unit | GMC2016 | GMC2516 | GMC2018 | GMC2518 | GMC3018 |
| Workbench area (LxW) | mm | 2000x1300 | 2500x1300 | 2000x1600 | 2500x1600 | 3000x1600 |
| T-slot | mm | 7 | 7 | 9 | 9 | 9 |
| Allowable load | kg | 4000 | 5000 | 6000 | 7000 | 8000 |
| X/Y/Z axis travel | mm | 2000/1650/800 | 2500/1650/800 | 2000/2000/1000 | 2500/2000/1000 | 3000/2000/1000 |
| Door width | mm | 1660 | 1660 | 1800 | 1800 | 1800 |
| Spindle end face to table center | mm | 250-1050 | 250-1050 | 150-1150 | 150-1150 | 150-1150 |
| Spindle taper hole | No. | BT50 | BT50 | BT50 | BT50 | BT50 |
| Spindle maximum speed | r/min | 6000 | 6000 | 6000 | 6000 | 6000 |
| Spindle motor maximum power | kw | 18.5 | 18.5 | 18.5 | 18.5 | 18.5 |
| Feed | X/Y/Z three-axis heavy-duty roller linear way | |||||
| X/Y/Z axis rapid traverse speed | m/min | 20/20/16 | 16/16/16 | 16/16/16 | 16/16/16 | 16/16/16 |
| Maximum chip speed | mm/min | 8000 | 8000 | 8000 | 8000 | 8000 |
| Number of tools | T | 24 | 24 | 24 | 24 | 24 |
| Positioning accuracy | mm | 0.02/1000 | 0.02/1000 | 0.02/1000 | 0.02/1000 | 0.02/1000 |
| Repeatability | mm | 0.015 | 0.015 | 0.015 | 0.015 | 0.015 |
| Machine weight | T | 19 | 21 | 21 | 23 | 26 |
