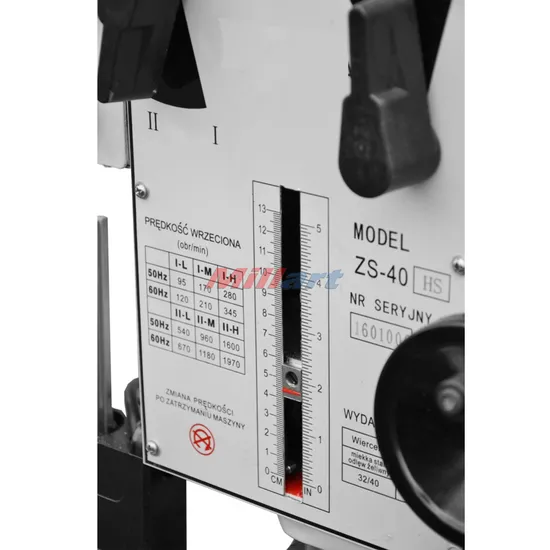

Drilling Machine with Tapping Function Zs-40/Zs-40p Bench Drilling for Metal

Product Description

Drilling Machine with Tapping Function ZS-40/ZS-40P Bench Drilling for Metal
Feature:
The machine adopt gear driving and the driving moment is strong.
The machine has the six series speed variable feature, which can be widely fit for processing to kinds of common hard& soft material.
The head can rotated 360 degree and can tilted ±45 degree,reliable and easy job can be done.
The motor drive by the gear, which overcome the short coming of the belt skid.
According to the customer demand the machine can drill, enlarge, ream and tap the multi-holes by the multi-spindles.
ZS40 without coolant system, ZS40P with coolant system
Technical parameter:

Model		ZS-40/ZS-40P
Max. Drilling capacity	mm	(Cast iron) 40 (Steel)32
Max. Tapping capacity	mm	(Cast iron) M32 (Steel)M24
Diameter of column	mm	115
Spindle travel	mm	120
Distance from spindle axis to column	mm	272.5
Max. Distance spindle nose to base	mm	800
Spindle taper		MT4
Spindle speeds	r/min	95 170 280 540 960 1600
Spindle speeds series		6
Dimension of base	mm	635*460/ 690*520
Motor	w	Single 750 Triple1100
G.W/N.W	kg	290/250 / 310/270
Packing dimension	cm	75x73x146

Standard accessories:
Drill chuck,
Reduction sleeve and arbor
Draw bar
Wrench
Operate manual
Optional accessories:
Machine vice
Spindle guard
Coolant system
Multi-spindles
