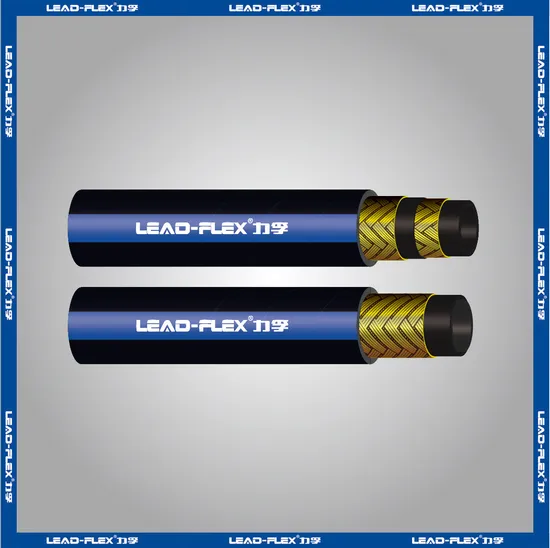

Durability SAE 100r2at/En853-2sn Double Layer High Tensile Steel Wire Hydraulic Rubber Hose

Product Description

Durability SAE 100R2AT/EN853-2SN Double Layer High Tensile Steel Wire Hydraulic Rubber HoseProduct Description
Double-layer high-pressure steel wire braided hose is a special hose used to transmit pressurized hydraulic oil in various hydraulic systems. Its structure consists of an inner hose and an outer steel wire braided layer. This design provides the hose with the strength and flexibility required to withstand high-pressure conditions and efficiently transport hydraulic oil.
The inner hose is usually made of oil-resistant and chemical-resistant synthetic rubber materials such as nitrile rubber or neoprene to ensure the fluid's sealing and corrosion resistance. The outer steel wire braided layer is woven from high-strength steel wire to form a solid protective layer, which enhances the mechanical strength and pressure resistance of the hose. This double-layer structure allows the hose to remain stable and durable even in high-pressure environments.
This hose has excellent pressure resistance and can withstand high working pressures, making it suitable for conveying high-pressure liquids or gases. The flexibility of its inner rubber layer enables it to adapt to complex pipeline layouts and equipment connections, reducing installation difficulties.The protective effect of the steel wire braided layer improves the hose's wear resistance and impact resistance, allowing it to maintain a good service life even in harsh working environments. In addition, the double-layer high-pressure steel wire braided rubber hose also has good weather resistance and aging resistance and can be used for a long time under various climatic conditions.
Product Parameters

Product Series	Nomnal Dlameter	Size	(ID)mm		(W.D)mm		( O D ) mm	W.P	B.P	Min.B.R	W.T
	mm	inch	min	max	min	max	max	Mpa	Mpa	mm	Kg/m
2SN-03-05	5	3/16"	4.6	5.4	10.6	11.7	16	41.5	166.0	90.0	0.33
2SN-04-06	6.3	1/4"	6.2	7.0	12.1	13.3	17.7	40.0	160.0	100.0	0.42
2SN-05-08	8	5/16"	7.7	8.5	13.7	14.9	19.4	35.0	140.0	110.0	0.47
2SN-06-10	10	3/8"	9.5	10.1	16.1	17.3	21.7	33.0	132.0	130.0	0.6
2SN-08-12.5	12.5	1/2"	12.3	13.5	19.0	20.6	25	27.5	110.0	180.0	0.73
2SN-10-16	16	5/8"	15.5	16.7	22.2	23.8	28.2	25.0	100.0	200.0	0.85
2SN-12-19	19	3/4"	18.6	19.8	26.2	27.8	32.2	21.5	86.0	240.0	1.03
2SN-16-25	25	1"	25.0	26.4	34.1	35.7	39.3	16.5	66.0	300.0	1.44
2SN-20-31.5	31.5	1-1/4"	31.4	33	43.2	45.6	50.4	12.5	50.0	420.0	2.14
2SN-24-38	38	1-1/2"	37.7	39.3	49.6	52.0	56.8	9.0	36.0	500.0	2.5
2SN-32-51	51	2"	50.4	52.0	62.3	64.7	69.4	8.0	32.0	630.0	3.07
2SN-40-63	63	2-1/2"	63.1	65.1	74.6	77.8	81.8	7.0	28.0	760.0	3.47

Detailed Photos
High Pressure Capability
These hoses are designed to withstand high hydraulic pressures, making them suitable for applications where high pressure is required.Flexibility
Despite the high pressure capacity, these hoses are flexible and easy to bend, allowing for easier installation and use in various applications.Durability
The steel wire braided reinforcement provides added strength and durability to the hose, enhancing its resistance to wear, abrasion, and punctures.Resistance to External Factors
These hoses are resistant to oil, weather, and other external factors, making them suitable for use in harsh environments.Wide Temperature Range
Double-layer high-pressure steel wire braided hydraulic hoses can operate effectively in a wide temperature range, making them versatile for different applications.Company Profile
