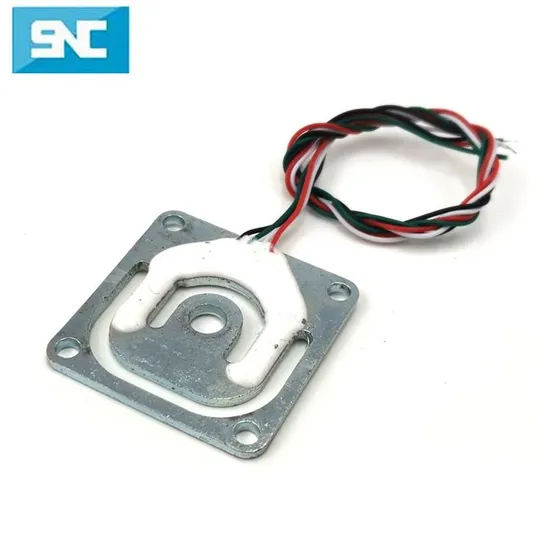

Full Bridge Sc134 Flat Thin Micro Weight Sensor Small Load Cell 10kg-300kg

Product Description

Full bridge 4 wires SC134 flat thin miniature micro force weight sensor small load cell 10kg 20kg 30kg 50kg 75kg 100kg 150kg
Product Description
Features:

Model: SC134
Capacity: 10kg, 30kg, 50kg, 75kg, 100kg, 150kg
Type: Full / half bridge load cell
Material: Alloy steel with IP66 waterproof
Application: Kitchen scale, body scale and other weighing devices.

Parameters:

Rated capacity	10kg, 30kg, 50kg, 75kg, 100kg, 150kg
Zero balance	±0.5mV/V
Output sensitivity	0.8±0.2mV/V-Half Bridge, 1.6±0.2mV/V-Full Bridge
linearity	0.05%F.S
Repeatability	0.05%F.S
Hysteresis error	0.05%F.S
Creep	0.05%F.S/1min
Comprehensive error	0.05%F.S
Temp. effect on span	0.1%F.S/10
Temp. effect on zero	0.2%F.S/10
Input resistance	1000±10Ω
Output resistance	1000±10Ω
Insulation resistance	≥2000MΩ (10VDC)
Excitation voltage	3~10VDC
Operating temp.range	-10~+60
Defend grade	IP66
Material	alloy steel
Cable (Full bridge)	Red, Black, White (Green)
Safe Overload F.S	150%F.S
Ultimate overload	150±10kg
Wiring	Red(input+) Black(input-) White(output-) Green(output+)
Item	Full bridge / half bridge load cell
