Car gps gsm tracker with camera 4G siganl mdvr mobile dvr system

Product Description

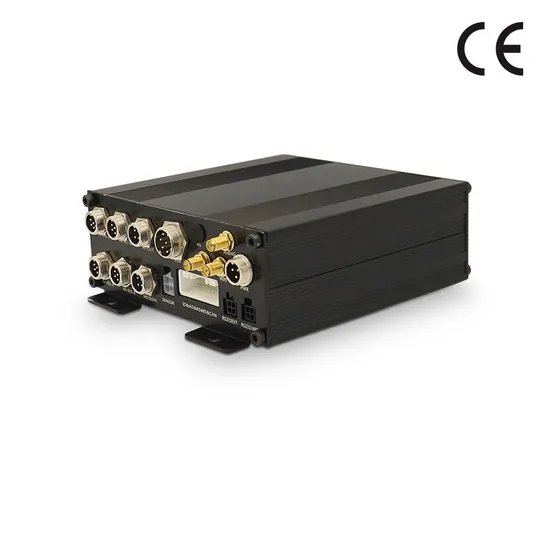

Meitrack 8CH 1080P Dual SD Card Mobile DVR MD822S
Product Overview
Specifications

Dimension	145 mm x 145 mm x 57 mm
Weight	818g
Power input	DC: 9-36 V; rated input: 12V/3A
Power consumption	Start the host audio and video: about 8W Connect 8 cameras: about 24 W in the daytime (a display connected: 29 W); about 32 W at night (a display connected: 37 W) Connect a single camera: 50-100 mA in the daytime; 200-250 mA at night
Operating temperature	-20°C to 70°C
Video input	8-channel 1080P@25FPS live video recording Support the connection of different kinds of cameras (D1/720P/1080P)
Video output	1-channel CVBS + 1-channel VGA
Compression standard	H.264/H.265 (Optional)
Image display	Support one-image and nine-image display
Audio compression	G.726
Audio input	8-channel camera Mic input. The audio funcon is required for the camera. 1-channel handset input, 1-channel 3.5 mm headphone jack input (GSM audio interface)
Audio output	1-channel independent audio DC blocking output (connected to the AV-OUT interface, VGA aviaon connector, or handset interface) , 1-channel 3.5 mm headphone jack output (GSM audio interface)
Recording search and playback	Search and play back videos based on the channel, recording type, or time.
Recording method	Simultaneously record the ACC, alert, sound, and video.
WiFi	802.11 b/g/n; frequency: 2.4 GHz; support AP/STA mode
GPS/GLONASS	Detect the insertion, pull-out, and short circuit of the antenna.
Storage medium	2 SD cards
2G/3G/4G	MD822S-E GSM: B3/B8, WCDMA: B1/B8 LTE FDD: B1/B3/B7/B8/B20/B28A MD822S-A WCDMA: B2/B4/B5, LTE FDD: B2B4/B12 MD822S-AU GSM: B2/B3/B5/B8, WCDMA: B1/B2/B5/B8 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28 LTE TDD: B40 MD822S-J WCDMA: B1/B6/B8/B19 LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 MD822S-G GSM: B2/B3/B5/B8, WCDMA: B1/B2/B4/B5/B6/B8/B19 LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B25/B26/B18/B19/B20/B28 LTE TDD: B38/B39/B40/B41

Accessories

ACCESSORIES	MD822S MDVR
	Power & ACC cable
	I/O cable
	USB cable
	GPS antenna
	3G/4G antenna
	WiFi antenna
	Lock key
	Cameras splitter (1 to 2)
	CD download card
OPTIONAL ACCESSORIES	Cameras (1080P/720P/D1)
	SD card
	VGA display
	CVBS display
	Microphone & speaker
	Ultrasonic fuel level sensor
	RFID reader
	RFID tag
	Camera extension cable
	Handset
	iButton reader
	iButton key
	Temperature sensor
	A61 sensor Box
	A53 fuel level sensor

Certificates: CE, NBTCMeitrack MS03 Advanced GPS Tracking Software
MMS03 is a professional centralized software that is tailor-designed to support businesses and sustainable platforms, ideal for
developers. The MS03 spotlights such features as GPS Tracking, Video Surveillance, and Alarm Systems amongst others.
Contact us to get a free demo!
Case StudyCity Buses
MD522S | Mexico
The Mexican government introduced Meitrack's MDVR bus management solution to guarantee the safety of Mexican residents, ensure a safe bus travel, and prevent illegal activities inside buses. In this project, Meitrack MD522S, camera, LCD display, SOS button, A91 passenger flow sensor and MS03 tracking platform work together to provide a one-stop internal bus monitoring solution.
Armored Vehicles
MD511H | Malaysia
Inside an armored bank vehicle, a MD511H mobile DVR is connected to four cameras. The video surveillance solution only allows
authorized staff to start the vehicle. If the vehicle door is opened without permission or the vehicle is hijacked, the monitoring
center can quickly and efficiently keep track of what's happening inside the vehicle, remotely cut off the en gine to prevent the
vehicle from moving, and take immediate action to minimize the loss.
